Giant  |  SKU: 2310162127

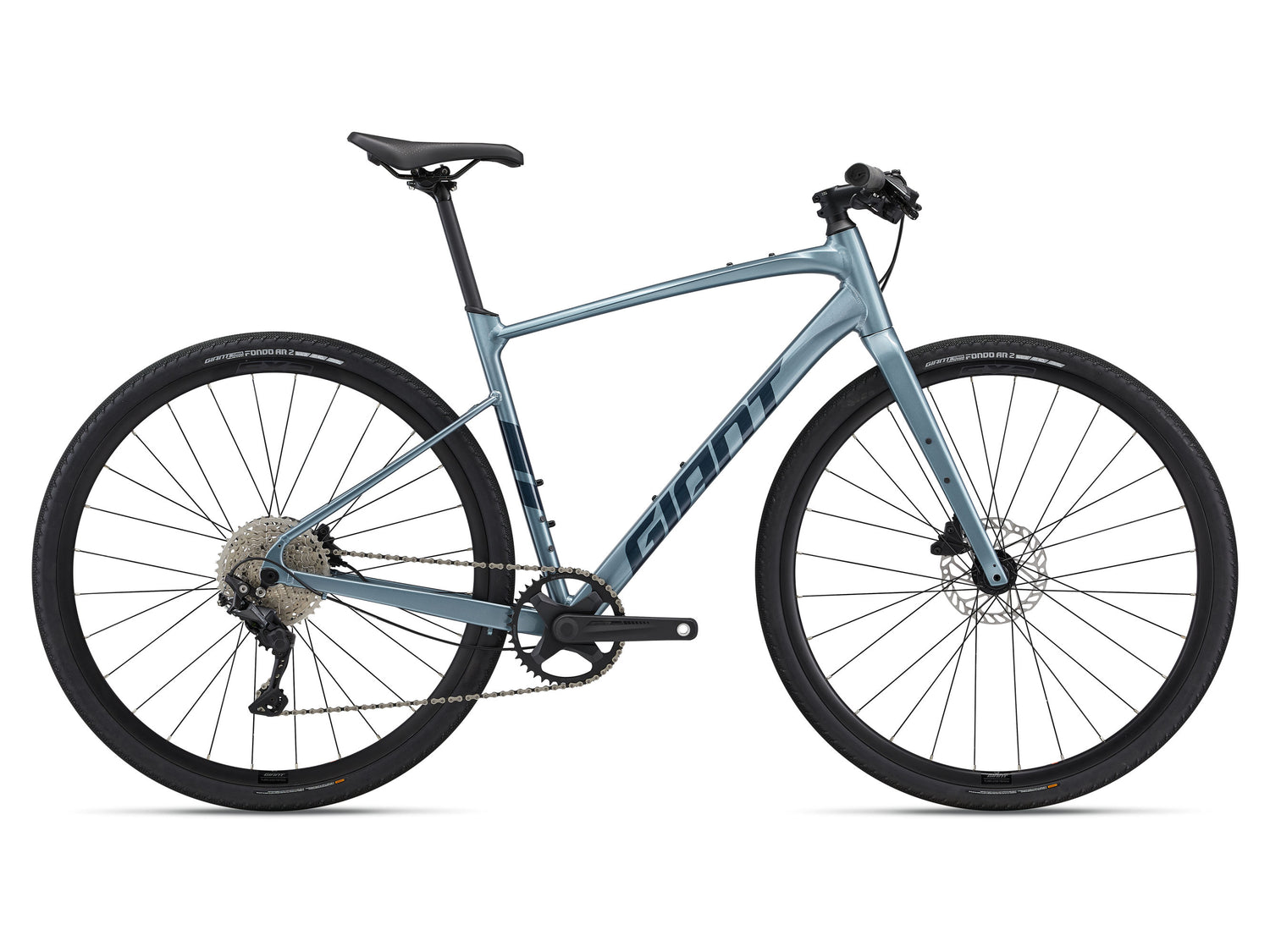

Giant Fastroad AR 1 (2023)

$1,59900 $1,79900
Colour: Aged Denim Blue
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant Fastroad

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Frame size Rider Height Rider Height (cm)
XS 5'1"-5'3" 155-165
S 5'3"-5'7" 160-170
M 5'7"-5'11" 170-180
L 5'11"-6'3" 180-190
XL 6'3"-6'7" 190-200



Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
A Seat Tube Length (mm) 435 455 475 495 525 555
B Seat Tube Angle 73.5° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 545 560 575 590 610 630
D Head Tube Length (mm) 110 130 155 175 200 225
E Head Tube Angle 70.5° 70.5° 71.0° 71.0° 71.5° 71.5°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 73.7 73.7 70.4 70.4 67.1 67.1
H Wheelbase (mm) 1031 1047 1058 1069 1084 1105
I Chain Stay Length (mm) 435 435 435 435 435 435
J Bottom Bracket Drop (mm) 75 75 75 75 75 75
K Stack (mm) 533 552 578 597 623 646
L Reach (mm) 387 396 404 407 419 432
M Stand Over Height (mm) 718 736 756 773 800 826
O Stem Length (mm) 70 80 90 90 100 110
P Crank Length (mm) 170 170 170 172.5 172.5 172.5
Q Wheel Size 700C 700C 700C 700C 700C 700C

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

IMAGINE A QUICK AND AGILE ROAD BIKE BUT WITH GREATER VERSATILITY.

WITH FLAT HANDLEBAR POSITIONING, SMOOTH COMPLIANCE AND WIDE TUBELESS TYRES, FASTROAD AR FREES YOU UP TO RIDE PAVED ROADS, BUMPY BIKE PATHS AND EVERYTHING IN BETWEEN.

LIGHTWEIGHT EFFICIENCY

High-quality ALUXX aluminium frame and composite fork deliver efficient pedalling power for a smooth, fast ride on variable roads and paths.

SMOOTH, STABLE RIDE QUALITY

Flat handlebar frame geometry creates a more upright riding position for confident handling. Powerful disc brakes offer added control in all conditions. And the combination of a D-Fuse composite seatpost and ErgoMax saddle helps smooth out rough roads.

ALL-ROAD CAPABILITIES

With clearance for high-volume tubeless tyres (up to 42mm), riders have the freedom and versatility to ride smooth roads, bumpy bike paths or gravel. Single or double chainring setups are available on different models to suit individual riding style and terrain.

SPECIFICATIONS

Sizes XS, S, M, ML, L, XL
Colour Aged Denim
Frame ALUXX SL-Grade Aluminium
Fork Advanced-Grade Composite, composite OverDrive steerer
Shock N/A
Handlebar Giant Sport, mini-rise, 31.8
Grips Giant ErgoContact
Stem Giant Contact
Seatpost Giant D-Fuse, composite, 350mm
Saddle Giant ErgoMax
Pedals Platform pedal
Shifters Shimano Deore, 1x11
Front Derailleur N/A
Rear Derailleur Shimano Deore XT
Brakes Tektro HD-R280, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers Tektro HD-R280
Cassette Shimano CS-M5100, 11x42
Chain KMC X11 with Missing Link
Crankset FSA Omega AGX+, 42t
Bottom Bracket Threaded
Rims Giant S-X2 Disc wheelset
Hubs Giant alloy, 12mm thru-axle
Spokes Sapim
Tyres Giant Gavia Fondo AR, tubeless, 700x40c
Extras Tubeless prepared, 42mm max tyre size
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Giant Fastroad AR 1 (2023)

$1,59900 $1,79900

Colour

Size

  • XS
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

ALUXX SL-Grade Aluminium

Fork

Advanced-Grade Composite, composite OverDrive steerer

Handlebar

Giant Sport, mini-rise, 31.8

Grips

Giant ErgoContact

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact

Seatpost

Giant D-Fuse, composite, 350mm

Saddle

Giant ErgoMax

Pedals

Platform

Shifters

Shimano Deore, 1x11

Front Derailleur

N/A

Rear Derailleur

Shimano Deore XT

Brakes

Tektro HD-R280, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers

Tektro HD-R280

Cassette/Freewheel

Shimano CS-M5100, 11x42

Chain

KMC X11 with Missing Link

Crankset

FSA Omega AGX+, 42t

Bottom Bracket

Threaded

Rims

Giant S-X2 Disc wheelset

Hubs

Giant alloy, 12mm thru-axle

Spokes

Sapim

Tyres

Giant Gavia Fondo AR, tubeless, 700x40c

Wheel Size

N/A

Extras

Tubeless prepared, 42mm max tyre size
