Giant  |  SKU: 9041004123

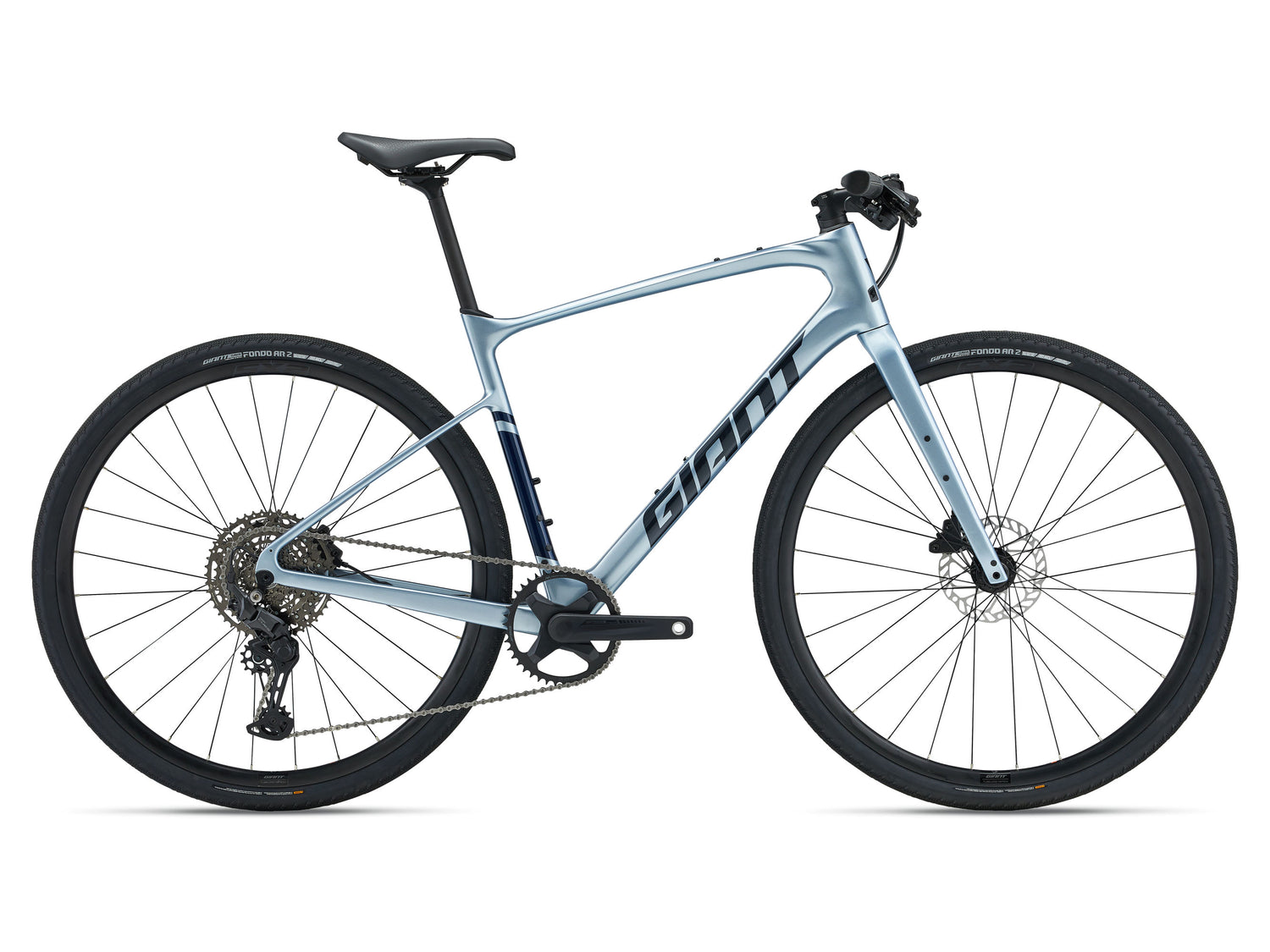

Giant FastRoad AR Advanced 2 (2024)

$1,79900 $2,29900
Colour: Glacier Silver
Size

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Giant Fastroad

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Frame size Rider Height Rider Height (cm)
XS 5'1"-5'3" 155-165
S 5'3"-5'7" 160-170
M 5'7"-5'11" 170-180
L 5'11"-6'3" 180-190
XL 6'3"-6'7" 190-200



Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
A Seat Tube Length (mm) 435 455 475 495 525 555
B Seat Tube Angle 73.5° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 545 560 575 590 610 630
D Head Tube Length (mm) 110 130 155 175 200 225
E Head Tube Angle 70.5° 70.5° 71.0° 71.0° 71.5° 71.5°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 73.7 73.7 70.4 70.4 67.1 67.1
H Wheelbase (mm) 1031 1047 1058 1069 1084 1105
I Chain Stay Length (mm) 435 435 435 435 435 435
J Bottom Bracket Drop (mm) 75 75 75 75 75 75
K Stack (mm) 533 552 578 597 623 646
L Reach (mm) 387 396 404 407 419 432
M Stand Over Height (mm) 718 736 756 773 800 826
O Stem Length (mm) 70 80 90 90 100 110
P Crank Length (mm) 170 170 170 172.5 172.5 172.5
Q Wheel Size 700C 700C 700C 700C 700C 700C

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

Contact us with any product enquiries you have prior to purchasing.

For more information, please read our Special Order terms and conditions.

Fitness gains made fun. This lightweight flyer has a sleek composite frameset, flat handlebar positioning and all-road capabilities so you can go from city streets to bumpy backroads with speed, comfort and control.

LIGHT & EFFICIENT

Advanced Composite frameset and sleek shaping make this model 350g lighter than the aluminium version. A stiffer bottom bracket area improves power transfer so you can accelerate and climb faster with less effort.

SMOOTH & COMFORTABLE

Flat handlebar frame geometry creates a more upright riding position for confident handling. Powerful disc brakes offer added control in all conditions. And the combination of a D-Fuse composite seatpost and ErgoContact saddle helps smooth out rough roads

FOR ALL ROADS

High-volume 40mm tubeless tyres offer the freedom and versatility to ride smooth roads, bumpy bike paths or gravel. Single or double chainring setups are available on different models to suit individual riding style and terrain.

Giant FastRoad AR Advanced 2 (2024)

From $1,79900 $2,29900

Colour

Size

  • XS
  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-grade composite, disc

Fork

Advanced-grade composite, composite OverDrive steerer, disc

Handlebar

Giant Sport, mini-rise, 31.8mm

Grips

Giant ErgoContact

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact, 8-degree // XS:70mm, S:80mm, M:90mm, M/L: 90mm, L:100mm, XL:110mm

Seatpost

Giant D-Fuse, composite

Saddle

Giant ErgoMax

Pedals

N/A

Shifters

Shimano CUES U6000, 10-speed

Front Derailleur

N/A

Rear Derailleur

Shimano CUES

Brakes

Tektro HD-R280, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers

Tektro HD-R280

Cassette/Freewheel

Shimano CS-LG400 10, 11T-48T

Chain

Shimano CN-LG500

Crankset

FSA Omega, 42T // XS:170mm, S:170mm, M:170mm, M/L:172.5mm, L:172.5mm, XL: 172.5mm

Bottom Bracket

FSA, press fit

Rims

Giant S-X2 Disc wheelset

Hubs

Giant alloy, 12mm thru-axle

Spokes

Sapim

Tyres

Giant Gavia Fondo AR, tubeless, 700x40c

Wheel Size

N/A

Extras

Tubeless prepared // 42mm max tyre size
