Giant  |  SKU: 9080024124

Giant Revolt Advanced 2 Gravel Bike (2026)

$3,69900
  • Advanced-grade composite frame
  • Advanced-grade composite fork
  • Shimano GRX RX-820 2x12-speed drivetrain
Colour: Carbon
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant Revolt

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height Rider Height (cm)
S 5′ 3″ – 5′ 7″ 159 – 171
M 5′ 7″ – 5′ 11″ 169 – 181
ML 5′ 9″ – 6′ 1″ 174 – 186
L 5′ 10″ – 6′ 3″ 179 – 191
XL 6′ 2″ – 6′ 7″ 189 – 200


Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
    SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 540 550 560 575 585 600
D Head Tube Length (mm) 125 135 150 165 180 195
E Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) 1024 | 1034 1020 | 1030 1026 | 1036 1031 | 1041 1041 | 1051 1056 | 1066
I Chain Stay Length (mm) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 556 570 586 602 616 630
L Reach (mm) 381 381 387 391 397 407
M Stand Over Height (mm) 724 | 731 740 | 747 757 | 764 774 | 780 791 | 797 807 | 814
O Stem Length (mm) 50 60 70 80 80 90
P Crank Length (mm) 170 170 172.5 172.5 175 175
Q Wheel Size 700c 700c 700c 700c 700c 700c

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Giant Revolt Advanced 2 Gravel Bike (2026)

Rough roads, gravel, or dirt — this bike handles it all with confidence. Its lightweight, smooth-riding composite frameset delivers efficiency and comfort on any surface. With an adjustable wheelbase for enhanced stability and control, it’s more capable than ever for adventure rides, endurance racing, or everyday exploration. Designed for versatility, speed, and smooth performance wherever you roll.

Key Performance Factors

Fast and light

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seatpost* for maximum compliance, or switch to a 30.9mm round or dropper post. *On select models

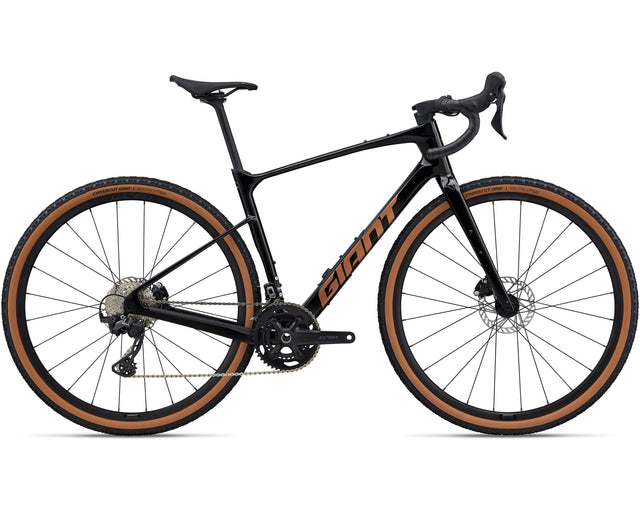

Giant Revolt Advanced 2 Road Bike (2026)

Giant Revolt Advanced 2 (2026)

$3,69900

Colour

Size

  • XS
  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

Fork

Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar

Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips

N/A

Bar Tape

Stratus Lite 3.0

Headset

N/A

Stem

Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost

composite

Saddle

Giant Grit

Pedals

N/A

Shifters

Shimano GRX RX-610, 2x12

Front Derailleur

Shimano GRX RX-820

Rear Derailleur

Shimano GRX RX-820, Shadow+

Brakes

Shimano BR-RX410hydraulic, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers

Shimano GRX RX-610 hydraulic

Cassette/Freewheel

Shimano CS-HG710, 12-speed, 11x36

Chain

KMC X12L-1

Crankset

Shimano RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket

Shimano, press fit

Rims

Giant P-X2 Disc wheelset, alloy

Hubs

Giant alloy, 12mm thru-axle

Spokes

Sapim

Tyres

Giant Crosscut Grip, 700x45c, tubeless

Wheel Size

N/A

Extras

Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag
