Liv  |  SKU: 9017040103

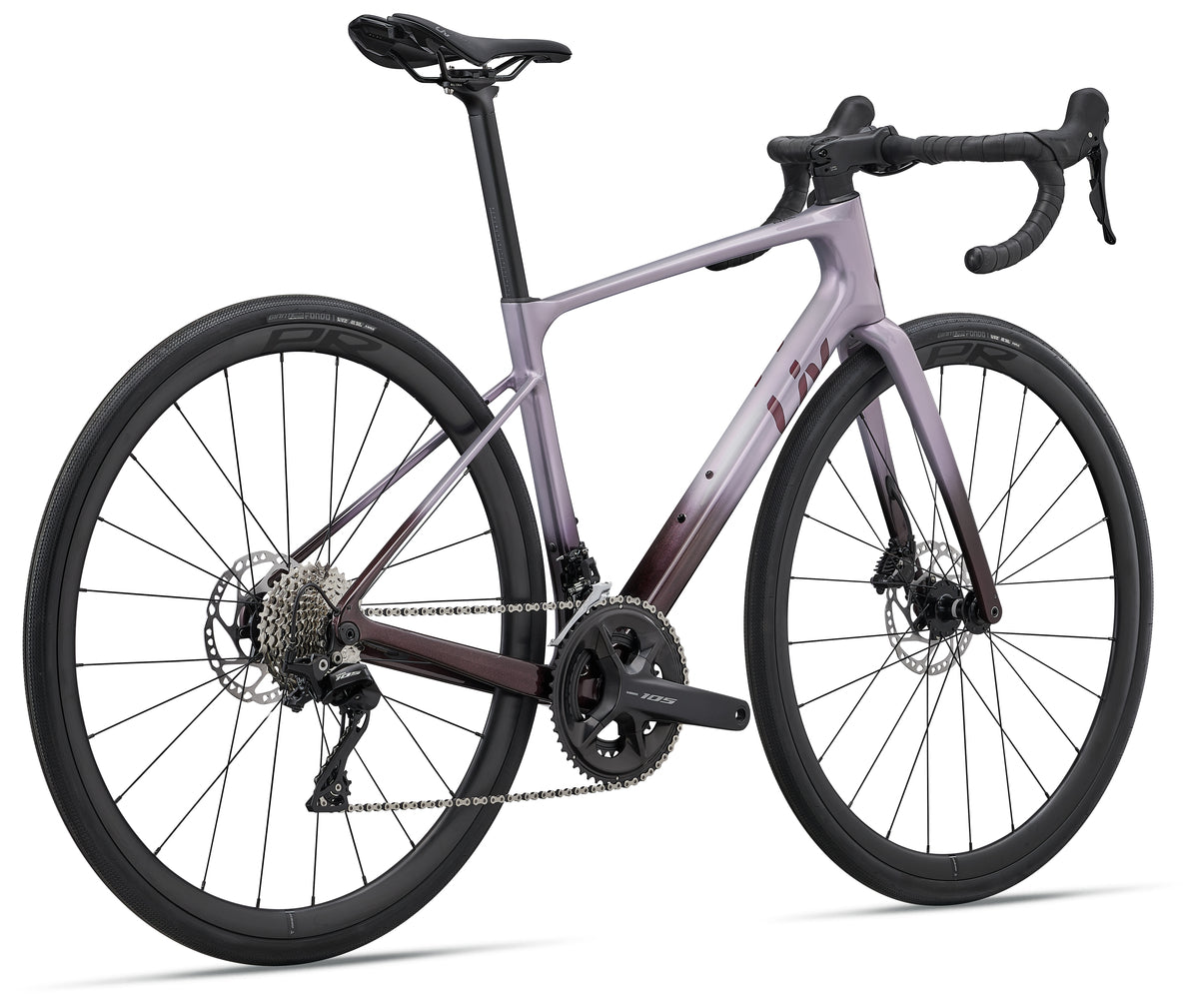

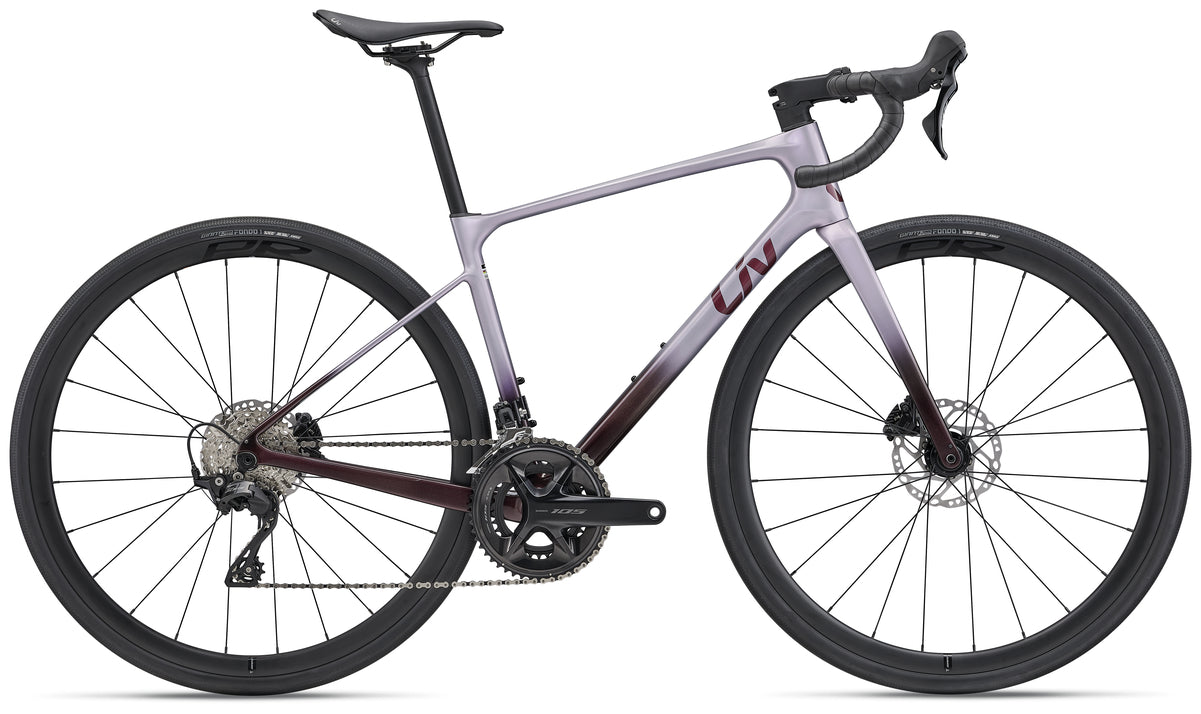

Liv Avail Advanced 2 (2027)

$3,79900
Colour: Cosmic Dust
Size
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing to be used as a reference only.

SIZE CHART

Size Height (cm) Height (feet)
XS 153 cm – 162 cm 5’0” – 5’4”
S 158 cm – 169 cm 5’2” – 5’7”
M 165 cm – 174 cm 5’5” – 5’9”



GEOMETRY

bike diagram with measurements referenced in table that follows

Size XS S M
Measurement mm inch mm inch mm inch
A Seat Tube Length 405 15.9 435 17.1 465 18.3
B Seat Tube Angle 74.5° 74.5° 74.0°
C Top Tube Length 520 20.5 525 20.7 535 21.1
D Head Tube Length 125 4.9 145 5.7 165 6.5
E Head Tube Angle 71.0° 71.0° 71.0°
F Fork Rake 50 2 50 2 50 2
G Trail 68.3 2.7 68.3 2.7 68.3 2.7
H Wheelbase 995 39.2 1002 39.4 1007 39.6
I Chain Stay Length 420 16.5 420 16.5 420 16.5
J Bottom Bracket Drop 75 3 75 3 75 3
K Stack 528 20.8 547 21.5 566 22.3
L Reach 373 14.7 373 14.7 373 14.7
M Stand Over Height 712 28 737 29 762 30
O Stem Length 70 2.8 80 3.1 90 3.5
P Crank Length 165 6.5 170 6.7 170 6.7

Shipping Information

This product:

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect
Buy Now, Pay Later with ZIP
Free service adjustment in first 6 months

The Avail Advanced is that riding buddy who’s up for any adventure on the road. From solo backroad explorations to after-work shop rides to all-day epic rides with friends.

Designed for performance and capable on any surface, this road warrior is ready to take you as far as you can go, which is always further than you think.

Lightweight Advantage

The Avail Advanced delivers lightweight efficiency, thanks to an all-new Advanced-grade carbon frame and an Advanced-grade carbon fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.

Superior Compliance

Ride longer without riding harder, with the reengineered frame and fork, optimised for the smoothest, most efficient riding experience.

The innovative Liv Contact D-Fuse handlebar and D-Fuse seat-post absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.

Maximum Control

The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those sunrise-to-sunset rides. Wide, alloy rims are designed for high-volume tubeless tyres (up to 38mm), providing predictable handling and stability from asphalt to pavé.

Liv Avail Advanced 2 (2027)

$3,79900

Colour

Size

  • XS
  • S
  • M

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-grade carbon, 12x142mm thru-axle, disc

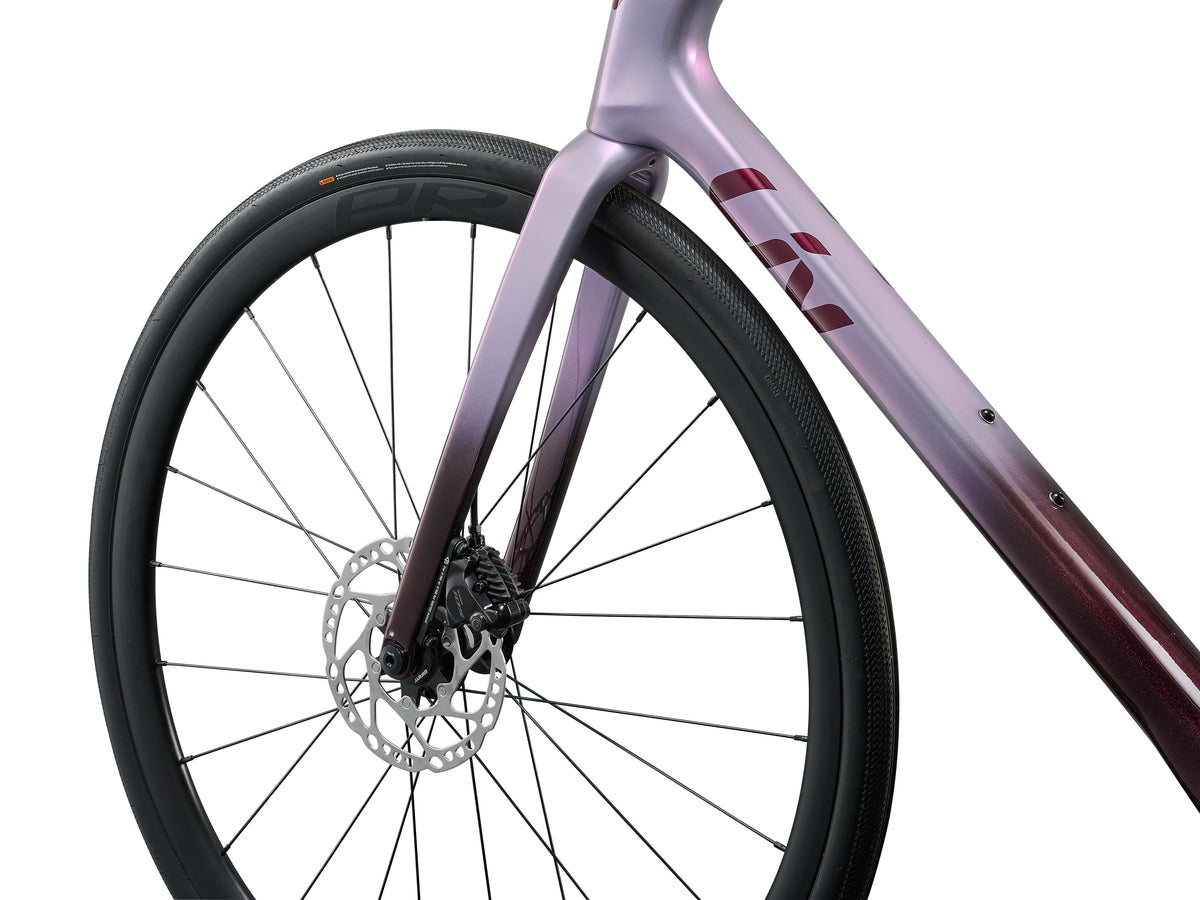

Fork

Advanced-grade carbon, full-carbon OverDrive steerer, 12x100mm, disc

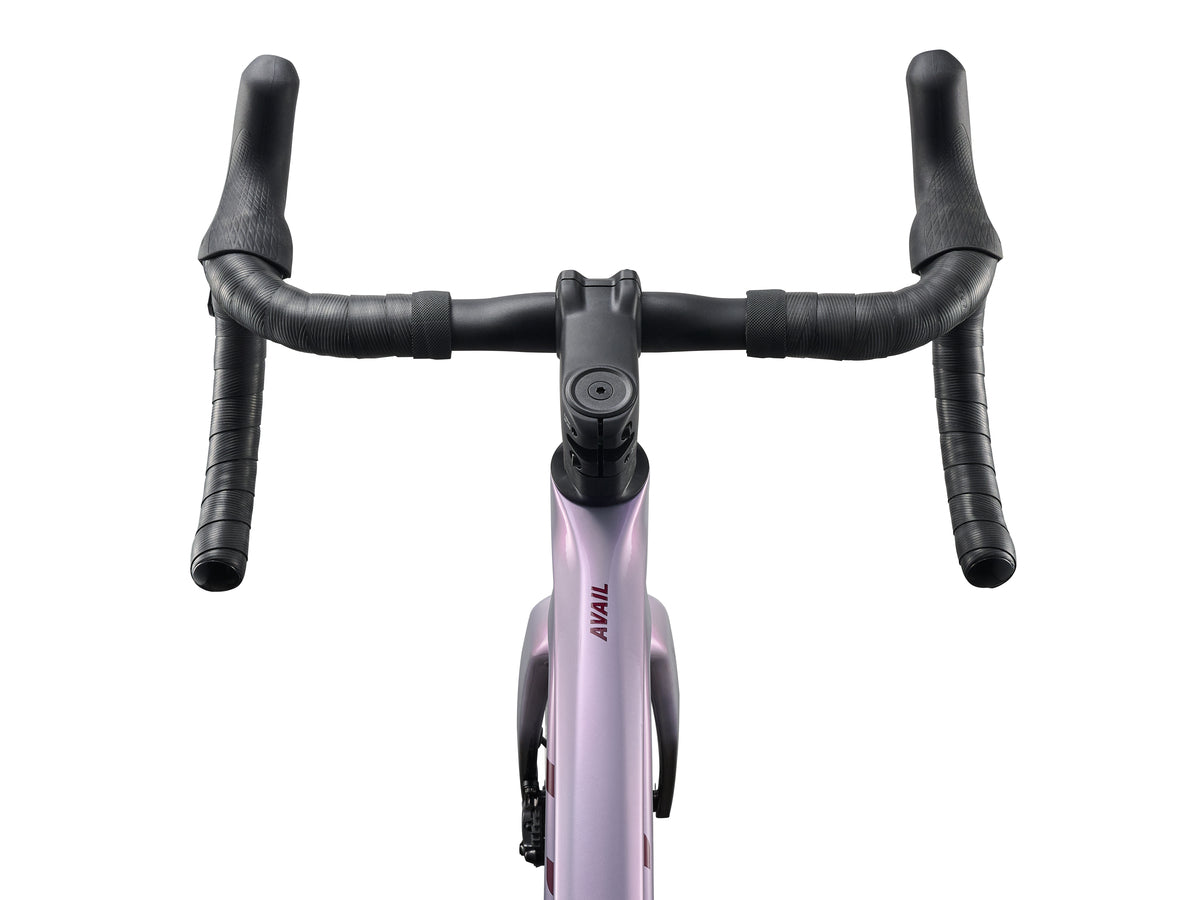

Handlebar

Liv Contact SL D-Fuse XS:38/41cm, S:40/43cm, M:40/43cm

Grips

Stratus Lite 3.0

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact AeroLight XS:70mm, S:80mm, M:90mm

Seatpost

Giant D-Fuse, composite, 14mm offset

Saddle

Liv Approach

Pedals

N/A

Shifters

Shimano 105

Front Derailleur

Shimano 105

Rear Derailleur

Shimano 105

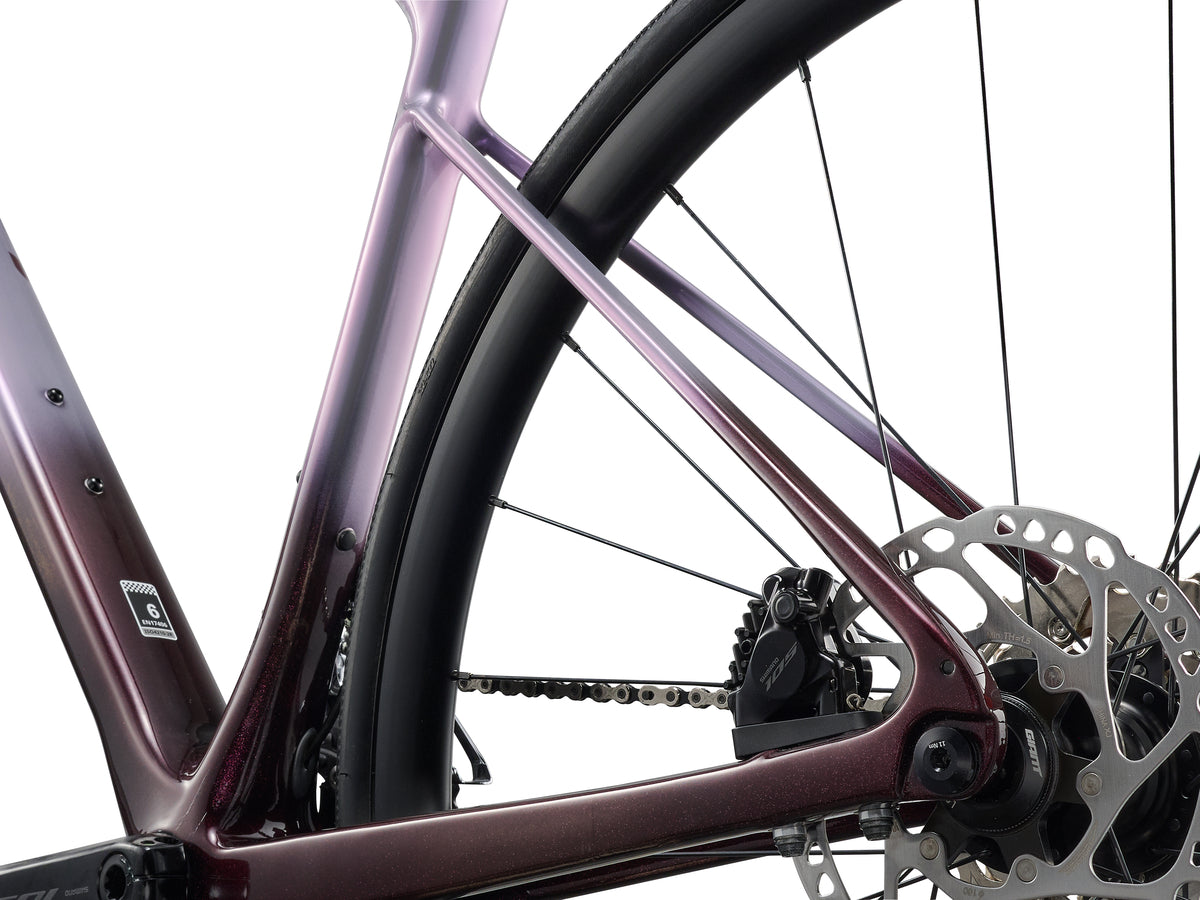

Brakes

Shimano 105 hydraulic, Shimano SM-RT64 [F]160mm, [R]160mm

Brake Levers

Shimano 105 hydraulic

Cassette/Freewheel

Shimano 105, 12-speed, 11x36

Chain

KMC X12L-1

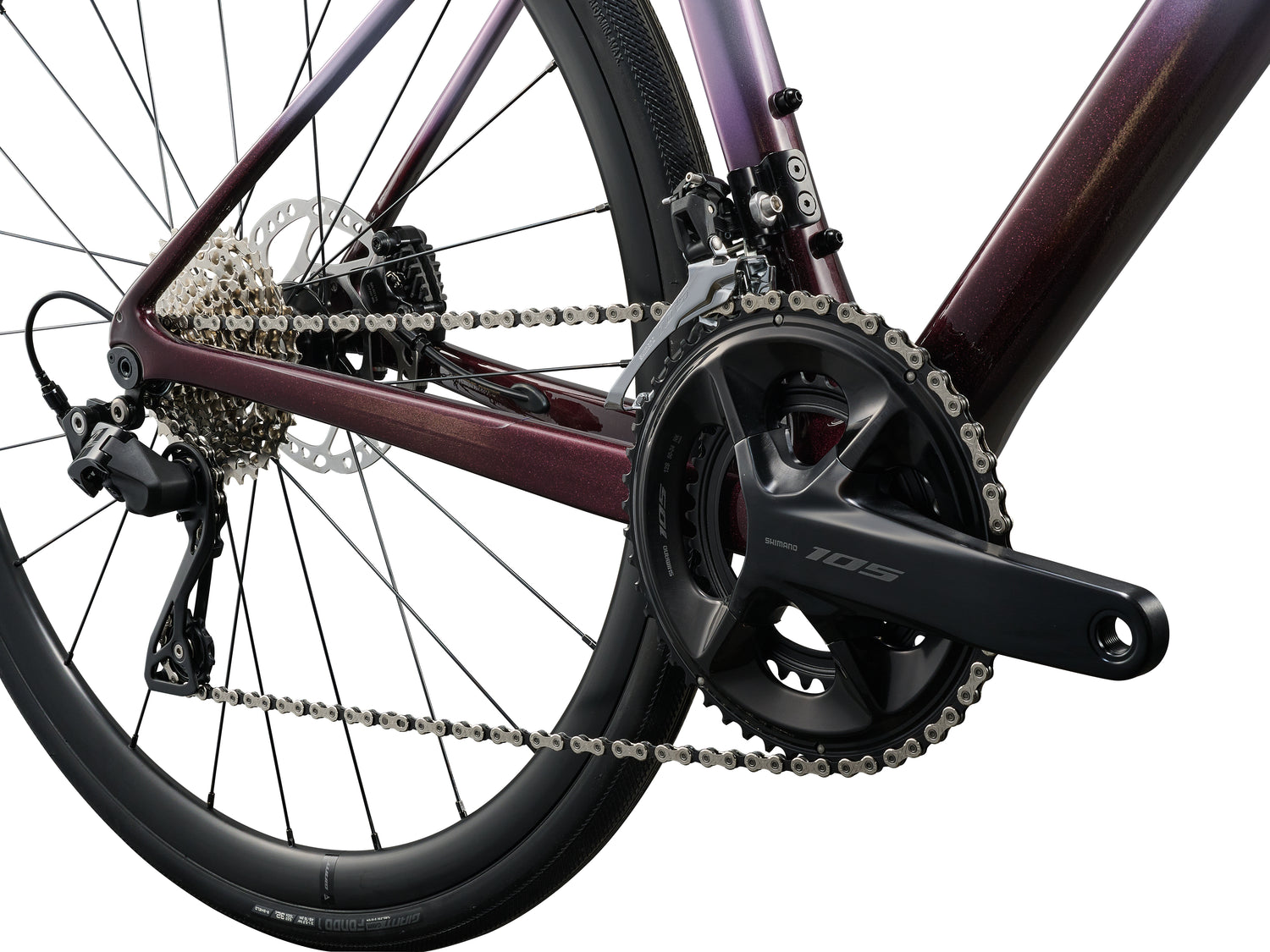

Crankset

Shimano 105, 34/50 XS:165mm, S:165mm, M:170mm

Bottom Bracket

Shimano, press fit

Rims

Giant P-R1, [F]30mm, [R]30mm

Hubs

[F] Giant alloy sealed bearing, CenterLock, 12mm thru-axle [R] Giant alloy sealed bearing, CenterLock, 12mm thru-axle

Spokes

N/A

Tyres

Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding

Wheel Size

N/A

Extras

Tubeless prepared
