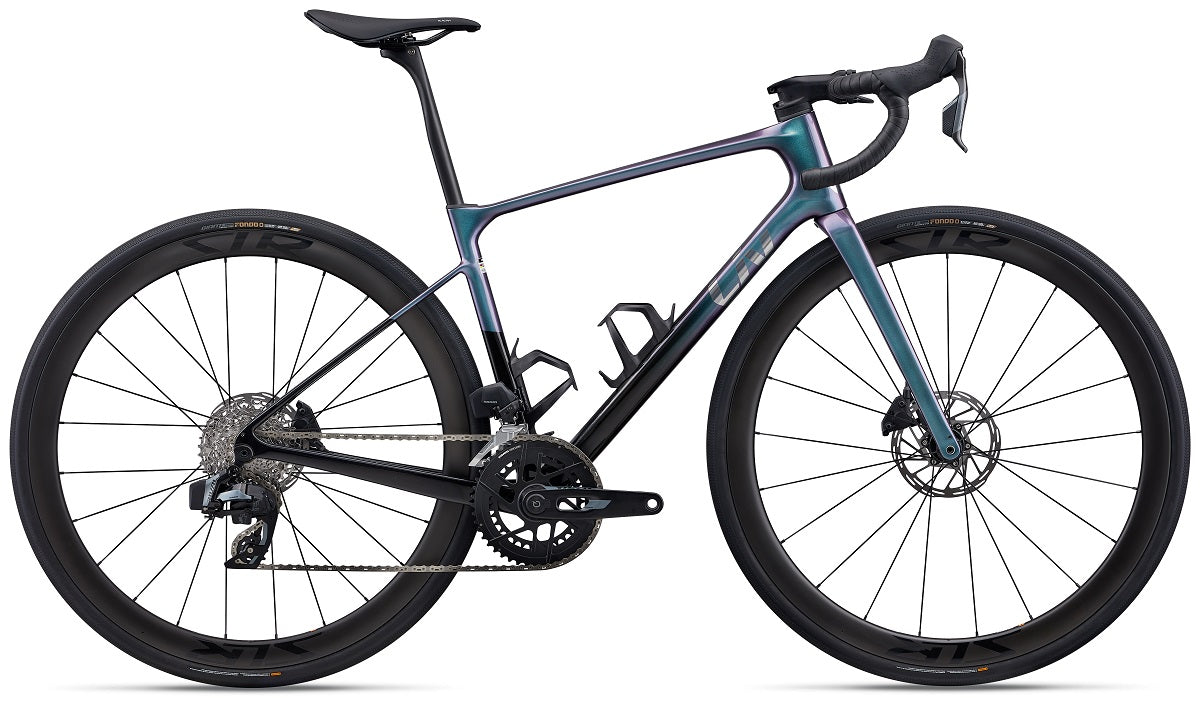

Liv Avail Advanced Pro 1 (2026)

$6,79900
Colour: Blue Dragonfly/Carbon
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing to be used as a reference only.

SIZE CHART

Size Height (cm) Height (feet)
XS 153 cm – 162 cm 5’0” – 5’4”
S 158 cm – 169 cm 5’2” – 5’7”
M 165 cm – 174 cm 5’5” – 5’9”



GEOMETRY

bike diagram with measurements referenced in table that follows

Size XS S M
Measurement mm inch mm inch mm inch
A Seat Tube Length 405 15.9 435 17.1 465 18.3
B Seat Tube Angle 74.5° 74.5° 74.0°
C Top Tube Length 520 20.5 525 20.7 535 21.1
D Head Tube Length 125 4.9 145 5.7 165 6.5
E Head Tube Angle 71.0° 71.0° 71.0°
F Fork Rake 50 2 50 2 50 2
G Trail 68.3 2.7 68.3 2.7 68.3 2.7
H Wheelbase 995 39.2 1002 39.4 1007 39.6
I Chain Stay Length 420 16.5 420 16.5 420 16.5
J Bottom Bracket Drop 75 3 75 3 75 3
K Stack 528 20.8 547 21.5 566 22.3
L Reach 373 14.7 373 14.7 373 14.7
M Stand Over Height 712 28 737 29 762 30
O Stem Length 70 2.8 80 3.1 90 3.5
P Crank Length 165 6.5 170 6.7 170 6.7

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

The Avail Advanced Pro is that riding partner who’s up for any challenge on the road—from long winding ascents to short gravel sections, and from solo endurance training rides to the “friendly” competition of a Gran Fondo. Designed for performance and built without compromise, this road warrior is ready to take you as far as you can go, which is always further than you think.

Lightweight Advantage

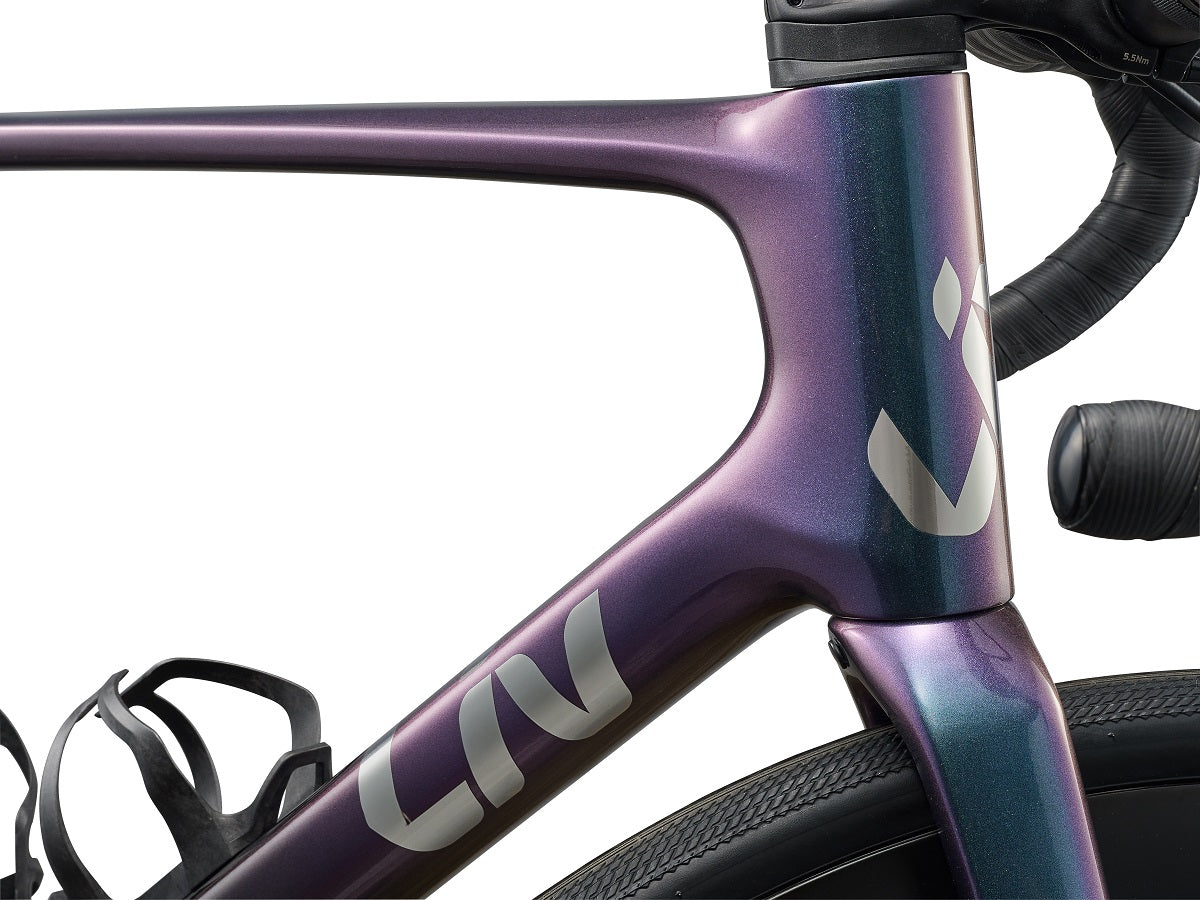

The Avail Advanced Pro is the ultimate in lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced SL-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.

Superior Compliance

Ride longer without riding harder, with the reengineered frame and fork, optimised for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.

Maximum Control

The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those all-day rides. Wide, hookless carbon rims are designed for high-volume tubeless tyres (up to 38mm) and a 36mm rim depth, providing predictable handling and stability from asphalt to pavé.



SPECIFICATIONS

Sizes XS, S, M
Colours Dreamy Blue/Carbon
Frame Advanced-grade composite, 12x142mm thru-axle, disc
Fork Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Handlebar Liv Contact SL D-Fuse, 31.8mm XS:38/41cm, S:40/43cm, M:40/43cm
Grips Liv Stratus Elite 2.0
Stem Giant Contact SL Aerolight XS:70mm, S:80mm, M:90mm
Seatpost Giant D-Fuse SL, composite, 16mm offset
Saddle Liv Alacra SL
Pedals N/A

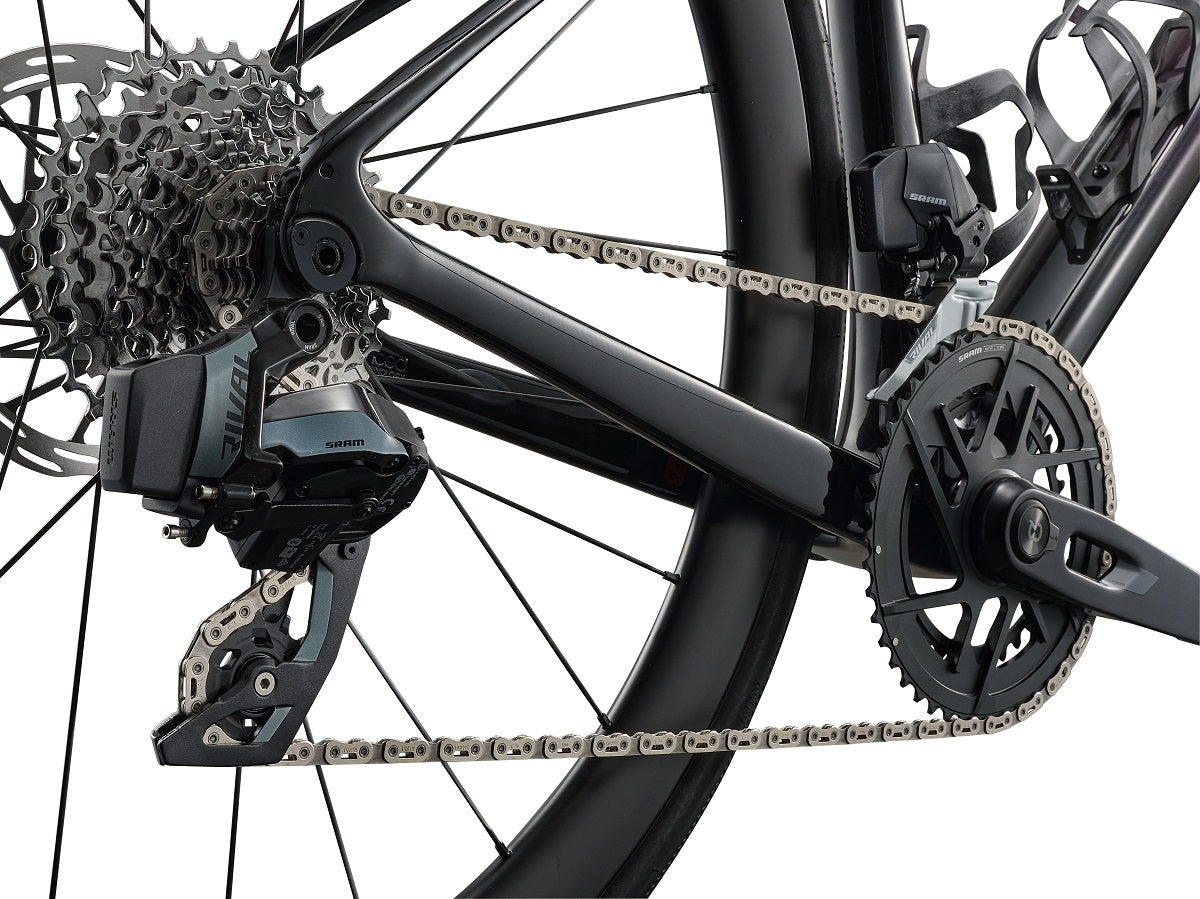

Shifters SRAM Rival AXS E1
Front Derailleur SRAM Rival AXS E1
Rear Derailleur SRAM Rival AXS E1
Brakes SRAM Rival E1 hydraulic, SRAM PaceLine rotors, [F] 160mm, [R] 140mm
Brake Levers SRAM Rival AXS E1
Cassette SRAM Rival E1, 12-speed, 10x36
Chain SRAM Rival E1
Crankset SRAM Rival E1 DUB, 33/46 with spindle power meter XS:165mm, S:165mm, M:170mm
Bottom Bracket SRAM DUB, press fit
Rims Giant SLR 1 40 WheelSystem, [F] 40mm, [R] 40mm
Hubs [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle
Spokes Sapim CX-Ray
Tires Giant Gavia Fondo 0, tubeless, 700x32c, folding

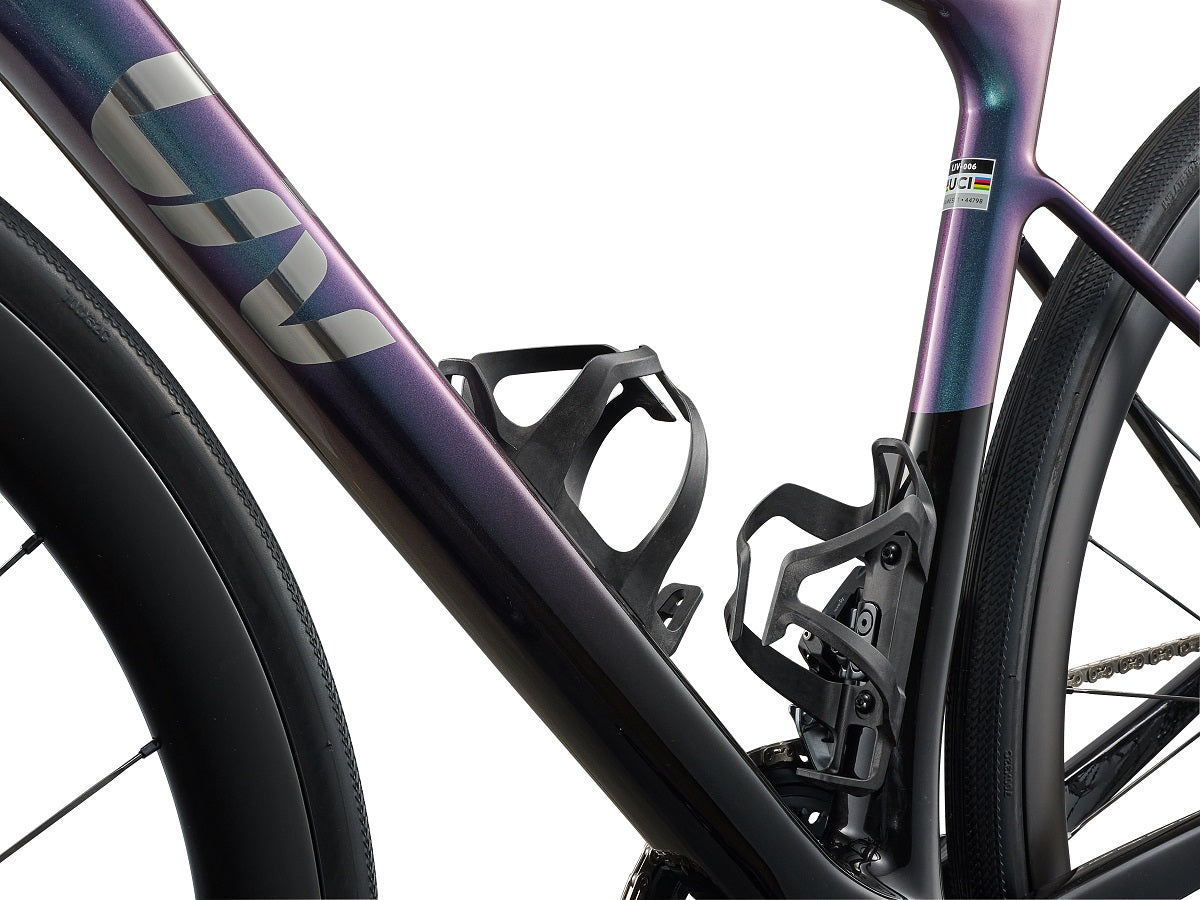

Extras Computer mount, water bottle cages, tubeless prepared, 38mm max tyre size
Max Tyre Clearance 38mm
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Liv Avail Advanced Pro 1 (2026)

$6,79900

Colour

Size

  • XS
  • S
  • M

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-grade composite, 12x142mm thru-axle, disc

Fork

Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc

Handlebar

Liv Contact SL D-Fuse, 31.8mm XS:38/41cm, S:40/43cm, M:40/43cm

Grips

N/A

Bar Tape

Liv Stratus Elite 2.0

Headset

N/A

Stem

Giant Contact SL Aerolight XS:70mm, S:80mm, M:90mm

Seatpost

Giant D-Fuse SL, composite, 16mm offset

Saddle

Liv Alacra SL

Pedals

N/A

Shifters

SRAM Rival AXS E1

Front Derailleur

SRAM Rival AXS E1

Rear Derailleur

SRAM Rival AXS E1

Brakes

SRAM Rival E1 hydraulic, SRAM PaceLine rotors, [F] 160mm, [R] 140mm

Brake Levers

SRAM Rival AXS E1

Cassette/Freewheel

SRAM Rival E1, 12-speed, 10x36

Chain

SRAM Rival E1

Crankset

SRAM Rival E1 DUB, 33/46 with spindle power meter XS:165mm, S:165mm, M:170mm

Bottom Bracket

SRAM DUB, press fit

Rims

Giant SLR 1 40 WheelSystem, [F] 40mm, [R] 40mm

Hubs

[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle

Spokes

Sapim CX-Ray

Tyres

Giant Gavia Fondo 0, tubeless, 700x32c, folding

Wheel Size

N/A

Extras

Computer mount, water bottle cages, tubeless prepared, 38mm max tyre size
