Liv  |  SKU: 2311093104

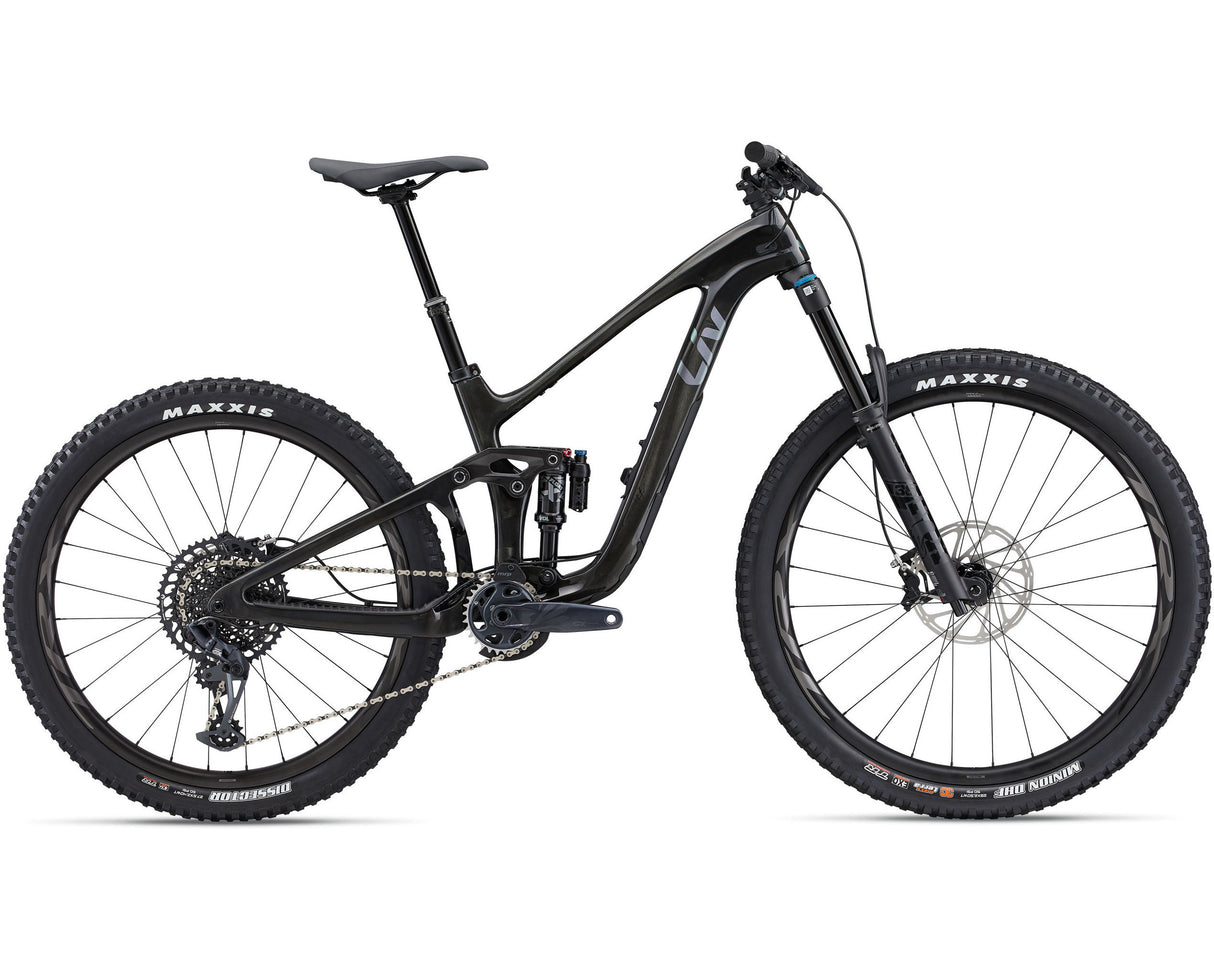

Liv Intrigue LT Advanced Pro 1 Women's MTB (2023)

$6,99900 $8,69900
  • Advanced-Grade Composite front and rear triangles | 150mm travel
  • Fox 36 Performance Elite fork | 160mm travel
  • Fox Float X Performance Elite shock
  • SRAM GX Eagle 12-speed drivetrain
Colour: Raw Carbon
Size

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Liv Intrigue LT Advanced Pro

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height Rider Height (cm)
XS 4' 11" - 5' 4"
 150 - 163
S 5′ 2″ – 5′ 7″ 158 – 169
M 5′ 5″ – 5′ 9″ 164 – 175
L 5′ 7″ – 5′ 11″ 170 – 181


Geometry

bike diagram with measurements referenced in table that follows
    XS S M L
    LOW | MID | HIGH LOW | MID | HIGH LOW | MID | HIGH LOW | MID | HIGH
A Seat Tube Length (inch) 14.6 15.4 16.5 17.7
B Seat Tube Angle (degrees) 76.2° | 76.6° | 77.0° 76.2° | 76.6° | 77.0° 77.3° | 77.6° | 78.0° 77.3° | 77.6° | 78.0°
C Top Tube Length (inch) 21.7 | 21.7 | 21.7 22.3 | 22.3 | 22.2 22.9 | 22.8 | 22.8 23.7 | 23.7 | 23.7
D Head Tube Length (inch) 3.7 3.7 3.9 4.3
E Head Tube Angle (degrees) 64.7° | 65.1° | 65.5° 64.6° | 65.1° | 65.5° 64.8° | 65.1° | 65.5° 64.8° | 65.1° | 65.5°
F Fork Rake (inch) 1.7 1.7 1.7 1.7
G Trail (inch) 5.2 | 5 | 4.9 5.2 | 5 | 4.9 5.1 | 5 | 4.9 5.1 | 5 | 4.9
H Wheelbase (inch) 45.9 | 45.9 | 45.8 46.6 | 46.5 | 46.4 47.6 | 47.5 | 47.5 48.5 | 48.5 | 48.5
I Chain Stay Length (inch) 17.4 | 17.4 | 17.3 17.4 | 17.4 | 17.3 17.4 | 17.4 | 17.3 17.4 | 17.4 | 17.3
J Bottom Bracket Drop (inch) 1 | 0.8 | 0.6 0.9 | 0.8 | 0.6 1.4 | 1.2 | 1 1.4 | 1.2 | 1
K Stack (inch) 24.8 | 24.7 | 24.6 24.7 | 24.7 | 24.6 24.7 | 24.6 | 24.5 25.1 | 25 | 24.8
L Reach (inch) 15.7 | 15.8 | 16 16.3 | 16.4 | 16.6 17.3 | 17.4 | 17.6 18.1 | 18.2 | 18.4
M Stand Over Height (inch) 24.1 | 24.1 | 24.1 26.5 | 26.5 | 26.5 28 | 28 | 28 29.5 | 29.5 | 29.5
O Stem Length (inch) 1.6 2 2 2
P Crank Length (inch) 6.5 6.7 6.7 6.7
Q Wheel Size F29"/R27.5 F29"/R27.5 29" 29"


Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

Contact us with any product enquiries you have prior to purchasing.

For more information, please read our Special Order terms and conditions.

Liv Intrigue LT Advanced Pro 1 Women's MTB (2023)

Own every line, rail every berm, and charge through with the Liv Intrigue LT Advanced Pro 1. Whether you're chasing enduro podiums, racking up park laps, or exploring backcountry singletrack, this long-travel weapon delivers the balance of power, control, and customisation to take your trail riding to the next level.

Engineered to Shred

The lightweight Advanced-Grade Composite frame is built for aggressive trail riding, featuring 150mm of Maestro rear suspension and 160mm up front—fine-tuned by women riders for women riders. With a slacker head angle and longer reach, it inspires control and confidence on descents while staying agile through tight turns.

Tune Your Ride

Thanks to the new Flip Chip – Maestro 3 system, you can adjust head and seat tube angles, bottom bracket height, and rear wheel size (sizes M and L only). This allows you to customise geometry to match trail conditions, riding style, or even wheel preference.

MX or Full 29—You Choose

XS and S sizes are purpose-built for a mixed-wheel setup: 29-inch front for stability and rollover, 27.5-inch rear for flickable fun. M and L sizes come stock with 29-inch wheels and offer the option to swap to a 27.5-inch rear for a more playful ride (sold separately). Whichever combo you choose, you get precision handling and fast-rolling performance.
Liv Intrigue LT Advanced Pro 1 Women's MTB (2023)

Liv Intrigue LT Advanced Pro 1 (2023)

$6,99900 $8,69900

Colour

Size

  • S
  • M
  • L

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-Grade Composite front and rear triangles, 150mm Maestro Suspension, flip chip – Maestro 3, integrated down tube storage

Fork

Fox 36 Performance Elite, 160mm, Grip damper, Boost, 15x110, Kabolt, tapered, 44mm offset

Handlebar

Giant Contact SL TR35

Grips

Liv Tactal single lock-on

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact SL

Seatpost

TranzX travel-adjustable dropper, remote

Saddle

Liv Sylvia

Pedals

N/A

Shifters

SRAM GX Eagle, 1x12

Front Derailleur

N/A

Rear Derailleur

SRAM GX Eagle

Brakes

SRAM G2 RSC, hydraulic, SRAM CenterLine rotors [F]200mm, [R]180mm

Brake Levers

SRAM G2 RSC

Cassette/Freewheel

SRAM GX Eagle, 10x52

Chain

SRAM GX

Crankset

SRAM GX, 30t, 55mm chainline

Bottom Bracket

SRAM DUB, press fit

Rims

Giant TRX 2 Carbon 29 WheelSystem

Hubs

[F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt

Spokes

Sapim

Tyres

[Size XS, S, M and L, F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [Size XS and S, R] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless [Size M and L, R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeles

Wheel Size

N/A

Extras

MRP AMg V2 chainguide, 3M tailgate protector, tubeless prepared, max tyre size 2.5", max chainring size 32t
