20" Mongoose Legion LXS BMX
20" Mongoose Legion LXS BMX - Red : This product is available for backorder only. Will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing
BMX Bikes
This sizing chart to be used as a reference only. Minor variances may exist between manufacturers. The best way to determine your size is to visit us in-store and get fitted.
| Wheel Size | Top Tube Length | Rider Height (cm) | Rider Height (in) |
|---|---|---|---|
| 12" | 12-12.5" | 60-91cm | 2'0"-3'0" |
| 14" | 14-14.5" | 81-106cm | 2'8"-3'6" |
| 16" | 16-16.5" | 96-122cm | 3'2"-4'0" |
| 18" | 18-18.5" | 122-147cm | 4'0"-4'10" |
| 20" | 19.75-20.25" | 147-157cm | 4'10"-5'3" |
| 20" | 20-20.5" | 157-168cm | 5'3"-5'6" |
| 20" | 20.25-20.75" | 168-175cm | 5'6"-5'9" |
| 20" | 20.5-21" | 175-183cm | 5'9"-6'0" |
| 20" | 20.75-21.5" | 183-190cm+ | 6'0-6'3" |
Shipping Information
Shipping Information
This product: Pickup in-store only. Shipping not available.
Shipping available†
We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.
†Only bikes stocked at our Warehouse location are available for shipping.
Shipping upon request to your local bike shop
Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .
Request a shipping quote to proceed.
Pickup in-store only
Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.
These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.
Pre-assembled bikes
†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.
Sizing
BMX Bikes
This sizing chart to be used as a reference only. Minor variances may exist between manufacturers. The best way to determine your size is to visit us in-store and get fitted.
| Wheel Size | Top Tube Length | Rider Height (cm) | Rider Height (in) |
|---|---|---|---|
| 12" | 12-12.5" | 60-91cm | 2'0"-3'0" |
| 14" | 14-14.5" | 81-106cm | 2'8"-3'6" |
| 16" | 16-16.5" | 96-122cm | 3'2"-4'0" |
| 18" | 18-18.5" | 122-147cm | 4'0"-4'10" |
| 20" | 19.75-20.25" | 147-157cm | 4'10"-5'3" |
| 20" | 20-20.5" | 157-168cm | 5'3"-5'6" |
| 20" | 20.25-20.75" | 168-175cm | 5'6"-5'9" |
| 20" | 20.5-21" | 175-183cm | 5'9"-6'0" |
| 20" | 20.75-21.5" | 183-190cm+ | 6'0-6'3" |

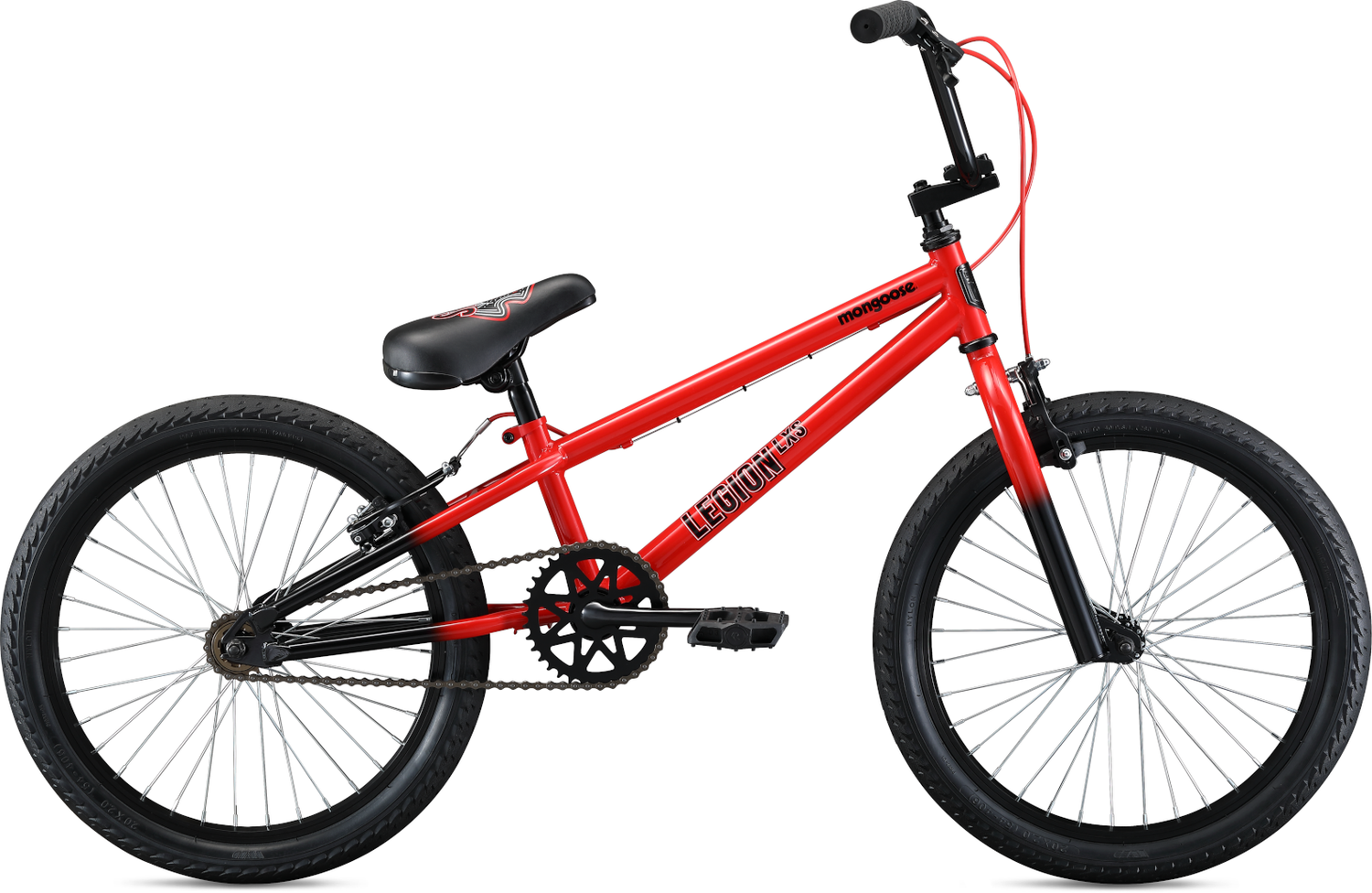

Mongoose Legion LXS
With the Legion Series, Mongoose offers a full line of freestyle BMX bikes for riders of all ages and ability levels.
The Legion LXS is the perfect sidewalk cruiser for young riders looking for their first 20” BMX-style bike.
Features
- High tensile steel frame and fork and 7” handlebar.
- 1-piece forged steel crank; 152 mm crank arms and 36/16-tooth gearing.
- Aluminium single wall 36H rims; 2.0" wide tyres.
| Size | 18.20-inch Top Tube |
| Frame | Hi-Ten steel, BMX freestyle geometry |
| Fork | Hi-Ten steel |
| Crank | 1-piece, forged steel, 36T steel chainring |
| Chain | KMC |
| Bottom Bracket | American loose ball, American loose ball |
| Cassette | 16-tooth freewheel |
| Rims | Aluminium single wall, 20mm ID, 36H |
| Hubs | [F] Steel, ball bearing, 3/8" axle, 36H [R] Steel, ball bearing, 3/8 in axle, 36H |
| Spokes | 14G, steel, black |
| Tyres | 20"x2.00", wire bead |
| Pedals | BMX, nylons |
| Brakes | Linear pull, steel |
| Handlebar | Hi-Ten steel, 26" width, 7" rise, 22.2mm clamp |
| Stem | Mongoose, threaded top load, 50mm |
| Headset | Threaded, 1” external, ball bearing |
| Seat Post | Steel, 250mm, 25.4mm |
| Saddle | Mongoose, steel rails |
| Grips | Mongoose Zig, 130mm |
| Notes | We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials. |
-
Age GroupKids
-
GenderBoys
-
SKURed: M51809M50OS
