Giant Reign 29 (2022)
Giant Reign 29 (2022) - Metal / S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability



Sizing Chart
Sizing Chart
Sizing and Geometry
Giant Reign
Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.
Frame size | Rider height |
S | 163-172cm |
M | 171-180cm |
L | 179-188cm |
XL | 187-198cm |
Geometry
S | M | L | XL | ||
---|---|---|---|---|---|
LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | ||
A | Seat Tube Length (mm) | 400 | 425 | 450 | 475 |
A1 | Seat Post Insertion Depth (mm) | 257 | 383 | 308 | 333 |
B | Seat Tube Angle | 78.3° | 78.7° | 79.0° | 78.3° | 78.7° | 79.0° | 77.3° | 77.7° | 78.0° | 77.3° | 77.7° | 78.0° |
C | Top Tube Length (mm) | 556 | 555 | 555 | 587 | 586 | 585 | 620 | 620 | 619 | 652 | 652 | 651 |
D | Head Tube Length (mm) | 100 | 105 | 115 | 120 |
E | Head Tube Angle | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° |
F | Fork Rake (mm) | 44 | 44 | 44 | 44 |
G | Trail (mm) | 140 | 138 | 135 | 140 | 138 | 135 | 140 | 138 | 135 | 140 | 138 | 135 |
H | Wheelbase (mm) | 1214 | 1213 | 1212 | 1246 | 1245 | 1244 | 1271 | 1270 | 1269 | 1304 | 1303 | 1302 |
I | Chain Stay Length (mm) | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 |
J | Bottom Bracket Drop (mm) | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 |
K | Stack (mm) | 627 | 624 | 622 | 632 | 629 | 626 | 641 | 638 | 635 | 645 | 642 | 639 |
L | Reach (mm) | 426 | 430 | 434 | 456 | 460 | 464 | 476 | 480 | 484 | 506 | 510 | 514 |
M | Stand Over Height (mm) | 723 | 727 | 732 | 743 | 747 | 752 | 756 | 760 | 765 | 771 | 777 | 782 |
O | Stem Length (mm) | 40 | 40 | 40 | 40 |
P | Crank Length (mm) | 165 | 170 | 170 | 170 |
Q | Wheel Size | 29" | 29" | 29" | 29" |
Shipping Information
Shipping Information
Certain bike brands cannot be shipped and are only available for Click and Collect.
These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.
For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.
Sizing and Geometry
Giant Reign
Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.
Frame size | Rider height |
S | 163-172cm |
M | 171-180cm |
L | 179-188cm |
XL | 187-198cm |
Geometry
S | M | L | XL | ||
---|---|---|---|---|---|
LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | ||
A | Seat Tube Length (mm) | 400 | 425 | 450 | 475 |
A1 | Seat Post Insertion Depth (mm) | 257 | 383 | 308 | 333 |
B | Seat Tube Angle | 78.3° | 78.7° | 79.0° | 78.3° | 78.7° | 79.0° | 77.3° | 77.7° | 78.0° | 77.3° | 77.7° | 78.0° |
C | Top Tube Length (mm) | 556 | 555 | 555 | 587 | 586 | 585 | 620 | 620 | 619 | 652 | 652 | 651 |
D | Head Tube Length (mm) | 100 | 105 | 115 | 120 |
E | Head Tube Angle | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° |
F | Fork Rake (mm) | 44 | 44 | 44 | 44 |
G | Trail (mm) | 140 | 138 | 135 | 140 | 138 | 135 | 140 | 138 | 135 | 140 | 138 | 135 |
H | Wheelbase (mm) | 1214 | 1213 | 1212 | 1246 | 1245 | 1244 | 1271 | 1270 | 1269 | 1304 | 1303 | 1302 |
I | Chain Stay Length (mm) | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 |
J | Bottom Bracket Drop (mm) | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 |
K | Stack (mm) | 627 | 624 | 622 | 632 | 629 | 626 | 641 | 638 | 635 | 645 | 642 | 639 |
L | Reach (mm) | 426 | 430 | 434 | 456 | 460 | 464 | 476 | 480 | 484 | 506 | 510 | 514 |
M | Stand Over Height (mm) | 723 | 727 | 732 | 743 | 747 | 752 | 756 | 760 | 765 | 771 | 777 | 782 |
O | Stem Length (mm) | 40 | 40 | 40 | 40 |
P | Crank Length (mm) | 165 | 170 | 170 | 170 |
Q | Wheel Size | 29" | 29" | 29" | 29" |

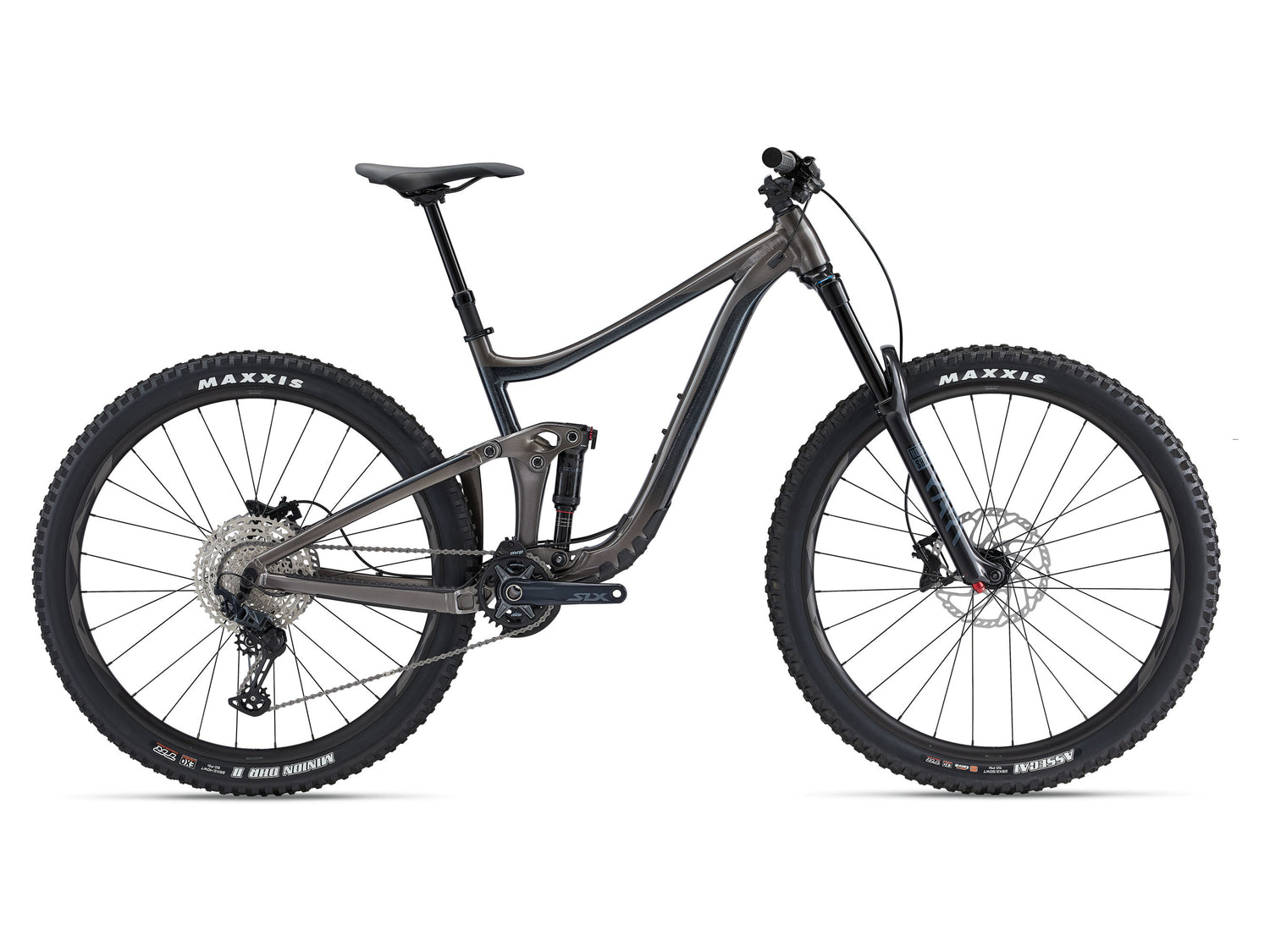

Giant Reign 29 (2022)
STEEP DROPS. BLIND LINES. BIG AIR. CHUNKY SINGLE TRACK.
With its smooth suspension and confident handling, the 2022 Reign 29 will help you tame the wildest enduro terrain.
Bred from Racing
Maestro rear suspension developed and tested under extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke and smoother feel, and the Advanced Forged Composite upper rocker arm adds stiffness while lowering overall frame weight.
Enduro
A strong and durable ALUXX-SL aluminium frameset helps you ride aggressive descents and rail corners with confidence. Enduro-optimised head and seat-tube angles, plus a 170mm fork with 44mm offset, produce confident front-end handling.
Confident
Larger 29-inch diameter wheels optimised to roll over rugged enduro terrain with improved balance and stability, giving you the momentum to crank up tough climbs and the confidence to fly on fast, technical descents.
-
