Giant  |  SKU: 9079008106

Giant Revolt Advanced Pro 0 (2024)

$7,29900 $8,29900
Colour: Digital Blurple/Iris
Size

PICKUP IN-STORE ONLY. Shipping not available on bikes.

 More payment options

Pickup currently unavailable at HALLAM
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled, ready to ride
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months
Warehouse - Out of stock
,
Heidelberg Heights - Out of stock
72 Bell Street Heidelberg Heights, Victoria 3081
+61394505200
Hoppers Crossing - In stock
319 Old Geelong Road Hoppers Crossing, Victoria 3029
+61387421975
Hallam - Out of stock
21/2-10 Hallam South Road Hallam, Victoria 3803
+61387951600

Sizing Chart

Sizing and Geometry

Giant Revolt

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height Rider Height (cm)
S 5′ 3″ – 5′ 7″ 159 – 171
M 5′ 7″ – 5′ 11″ 169 – 181
ML 5′ 9″ – 6′ 1″ 174 – 186
L 5′ 10″ – 6′ 3″ 179 – 191
XL 6′ 2″ – 6′ 7″ 189 – 200


Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
    SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 540 550 560 575 585 600
D Head Tube Length (mm) 125 135 150 165 180 195
E Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) 1024 | 1034 1020 | 1030 1026 | 1036 1031 | 1041 1041 | 1051 1056 | 1066
I Chain Stay Length (mm) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 556 570 586 602 616 630
L Reach (mm) 381 381 387 391 397 407
M Stand Over Height (mm) 724 | 731 740 | 747 757 | 764 774 | 780 791 | 797 807 | 814
O Stem Length (mm) 50 60 70 80 80 90
P Crank Length (mm) 170 170 172.5 172.5 175 175
Q Wheel Size 700c 700c 700c 700c 700c 700c

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

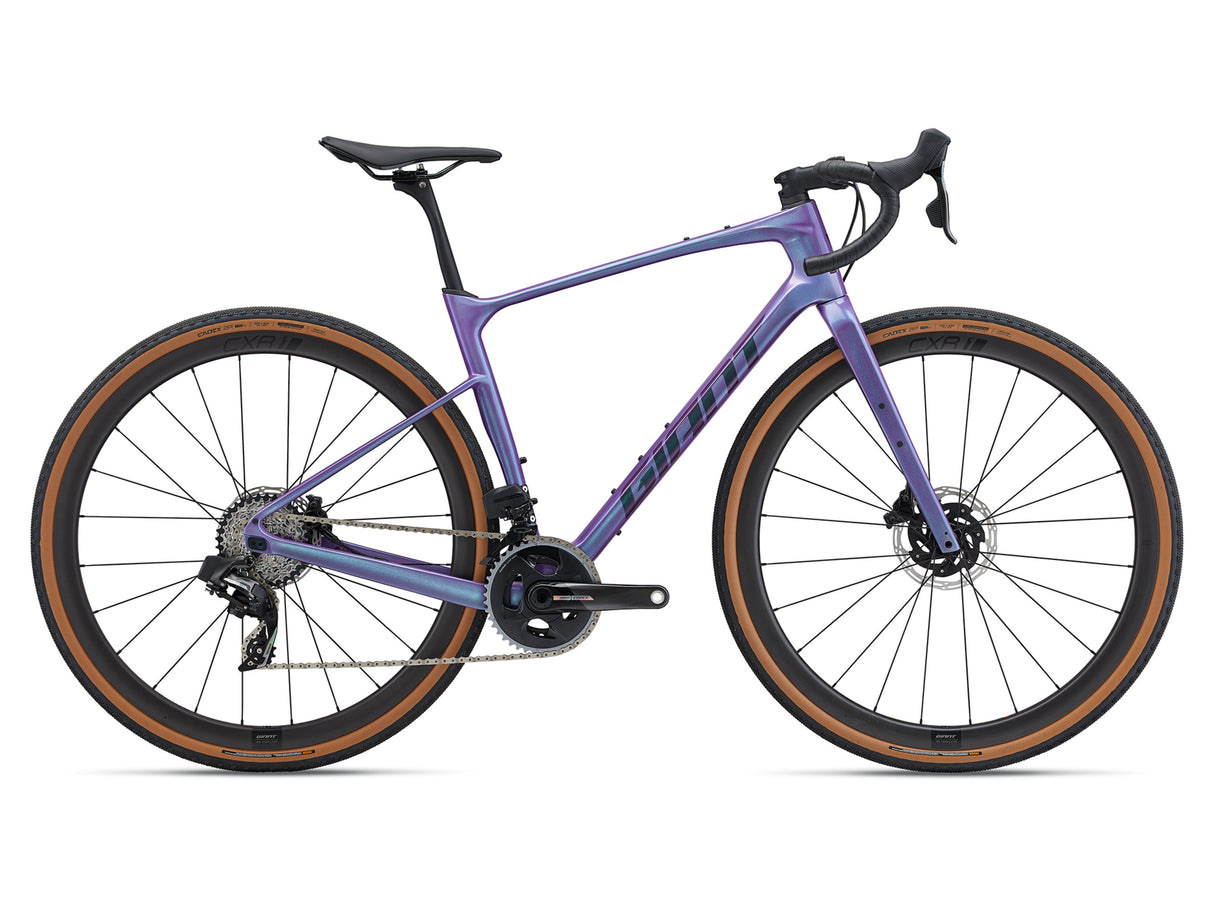

Giant Revolt Advanced Pro 0 (2024)

Fast gravel is fun gravel. The race bike of choice for Giant gravel racing pros is superlight, smooth over rugged roads, and adaptable to all types of conditions and riding styles. Race it, ride it, love it.

Lightweight

Advanced composite frame and Advanced SL composite fork save a combined 200 grams compared to previous generation.

Updated geometry includes a lower bottom bracket, longer reach, and steeper head tube angle for improved acceleration and climbing.

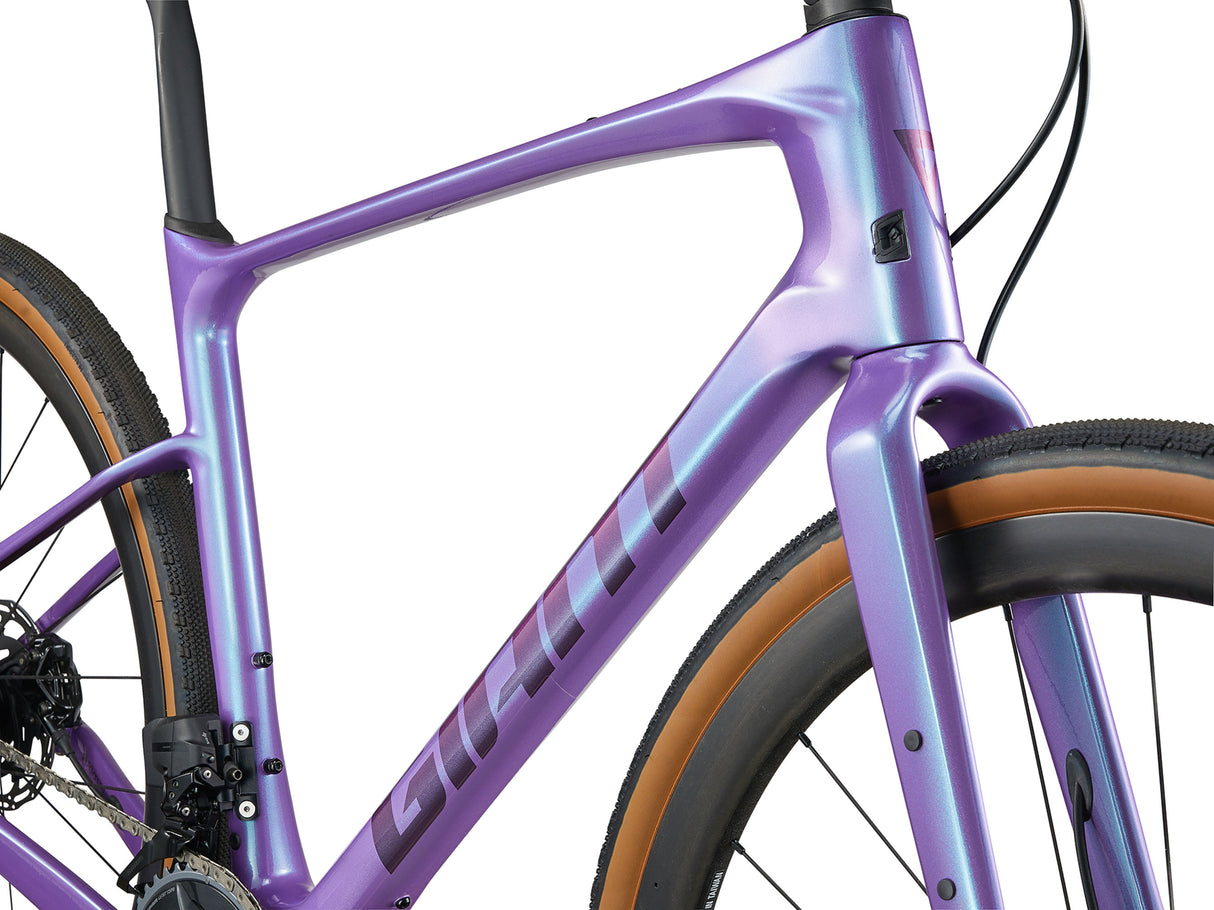

Tuned Compliance

A lowered seatstay junction with smaller diameter tubes absorbs road shocks and vibrations.

The Contact SLR XR D-Fuse carbon handlebar and D-Fuse seatpost work as a system to optimise compliance without sacrificing stiffness while cornering, sprinting and climbing.

Adaptable

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm.

You can choose the included D-Fuse SLR composite seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

New content loaded

Giant Revolt Advanced Pro 0 (2024)

$7,29900 $8,29900

Colour

Size

  • XS
  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced composite, 12x142mm thru-axle // Flip chip dropout

Fork

Advanced SL composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar

Giant Contact SLR XR D-Fuse, 31.8mm | XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips

Stratus Lite 3.0

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact, 8-degree | XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost

Giant D-Fuse SLR, composite, -5/+15mm offset

Saddle

Giant Approach SL

Pedals

N/A

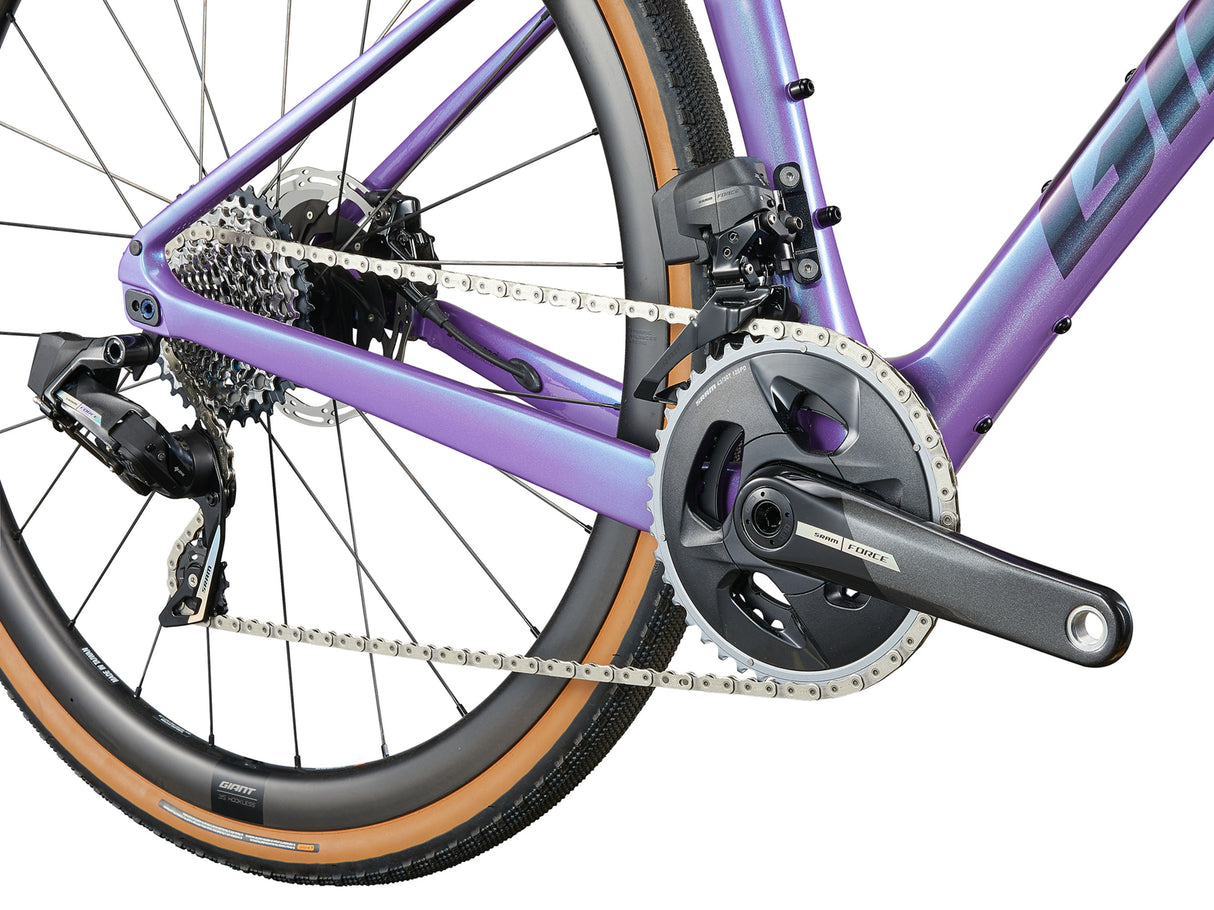

Shifters

SRAM Force eTap AXS, 2x12 speed

Front Derailleur

SRAM Force eTap AXS Wide

Rear Derailleur

SRAM Force eTap AXS, 12 speed

Brakes

SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors, [F]160mm, [R]160mm

Brake Levers

SRAM Force eTap AXS hydraulic

Cassette/Freewheel

SRAM Force, 10T-36T, 12 speed

Chain

SRAM Force D1

Crankset

SRAM Force D1 DUB, 30T/43T | XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket

SRAM DUB, press fit

Rims

Giant CXR 1 Carbon

Hubs

[F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36T ratchet system, CenterLock, 12mm thru-axle

Spokes

Sapim CX-Ray

Tyres

CADEX AR, 700x40c, tubeless

Wheel Size

N/A

Extras

Tubeless prepared, 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position
