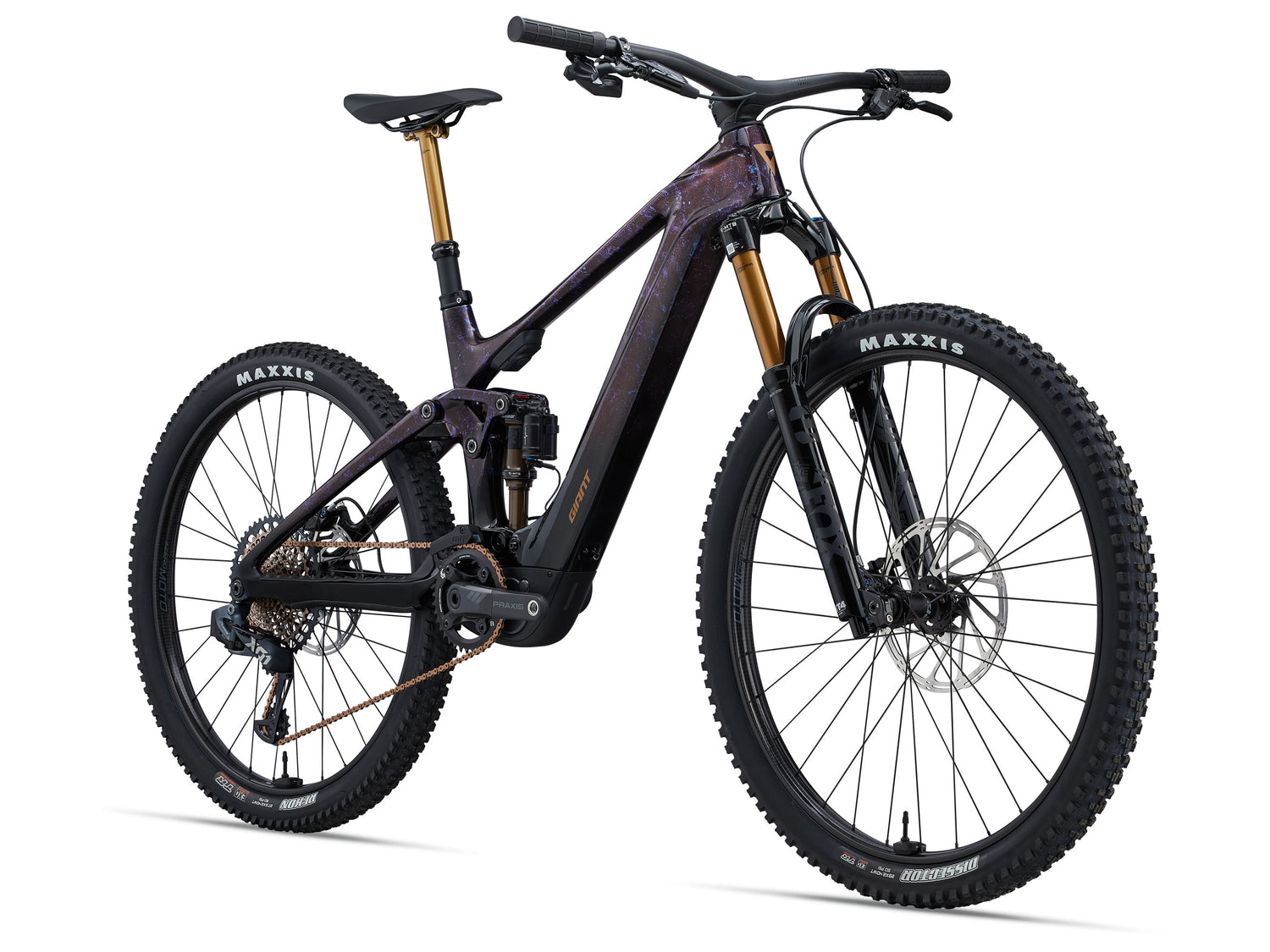

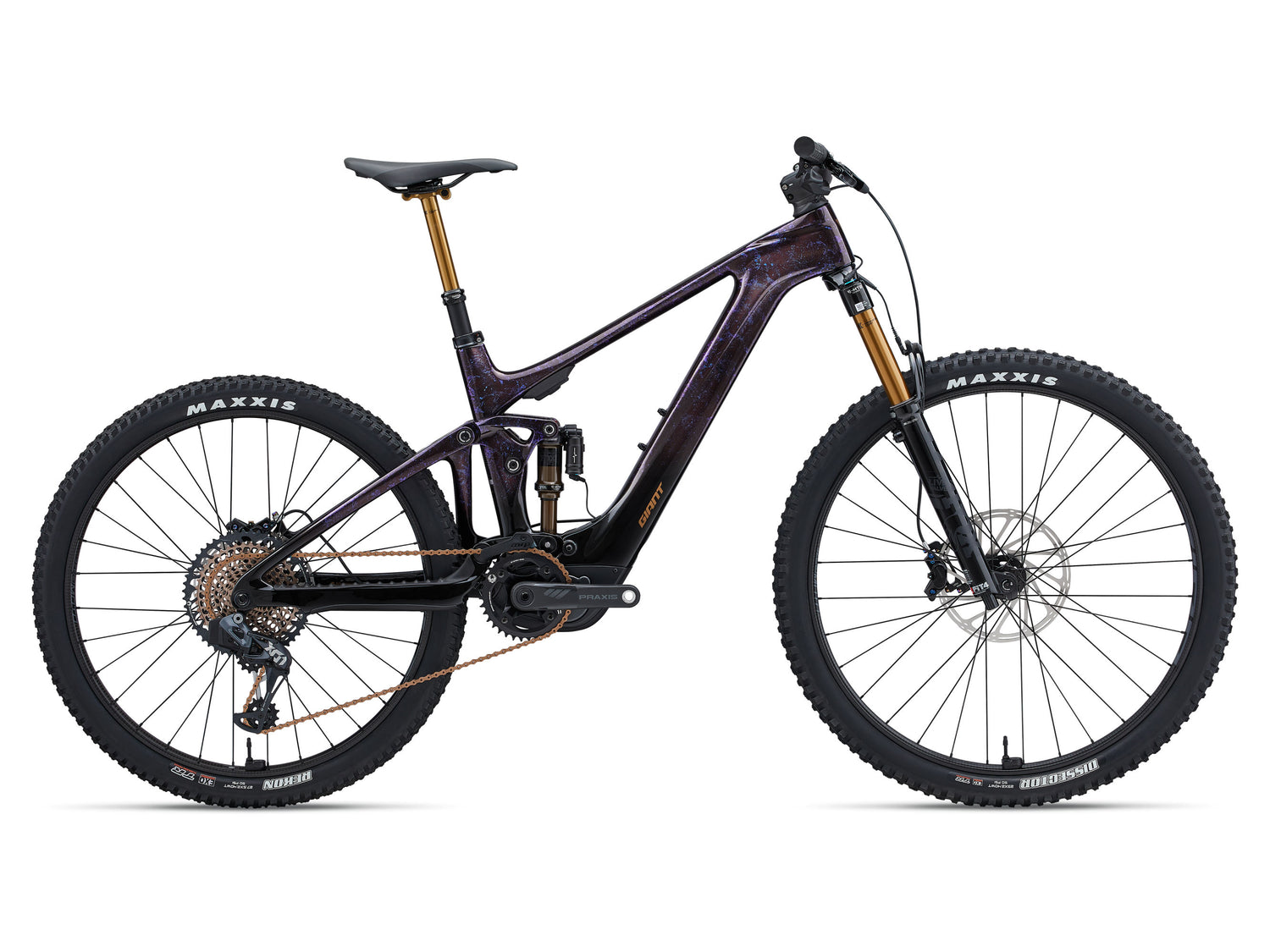

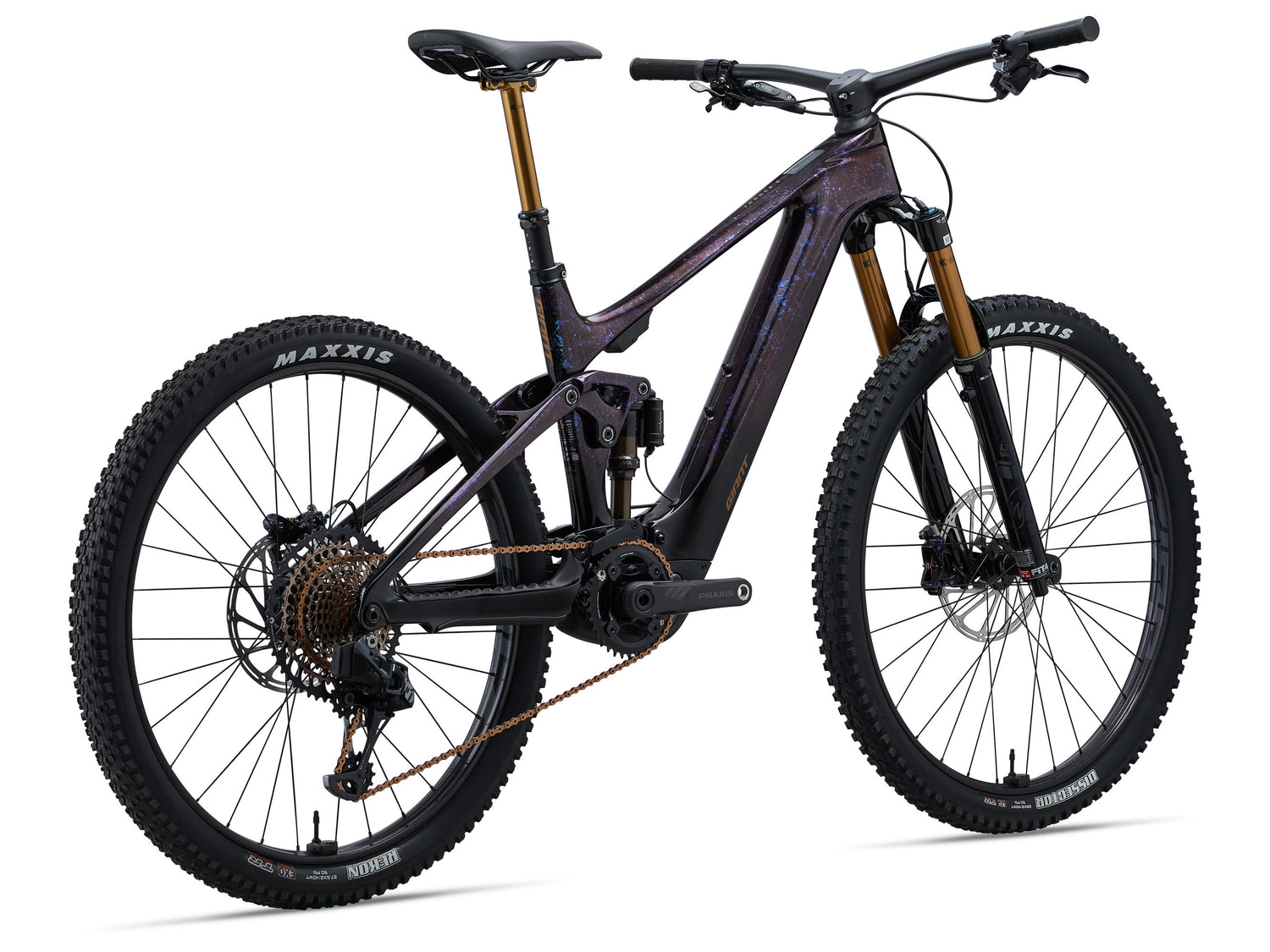

Giant Trance X Advanced E+ Elite 0 (2023)
Giant Trance X Advanced E+ Elite 0 (2023) - Mirage/Black / L is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Giant Trance E+
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height | Rider Height (cm) |
|---|---|---|
| S | 5′ 4″ – 5′ 9″ | 163 – 174 |
| M | 5′ 7″ – 6′ 0″ | 171 – 182 |
| L | 5′ 10″ – 6′ 3″ | 179 – 190 |
| XL | 6′ 2″ – 6′ 6″ | 187 – 199 |
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | Seat Tube Length (inch) | 15.7 | 16.7 | 17.7 | 18.7 |
| A1 | Seat Post Insertion Depth (inch) | 8.7 | 9.6 | 10.6 | 11.6 |
| B | Seat Tube Angle | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | Top Tube Length (inch) | 22.7 | 22.6 | 23.9 | 23.8 | 25 | 25 | 26.2 | 26.1 |
| D | Head Tube Length (inch) | 3.7 | 3.9 | 4.5 | 5.1 |
| E | Head Tube Angle | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | Trail (inch) | 4.4 | 4.3 | 4.4 | 4.3 | 4.4 | 4.3 | 4.4 | 4.3 |
| H | Wheelbase (inch) | 47 | 47 | 47.8 | 47.7 | 49 | 49 | 50.2 | 50.2 |
| I | Chain Stay Length (inch) | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 |
| J | Bottom Bracket Drop (inch) | 0.4 | 0.4 | 0.4 | 0.4 |
| K | Stack (inch) | 23.9 | 23.7 | 24.1 | 23.8 | 24.6 | 24.4 | 25.2 | 24.9 |
| L | Reach (inch) | 17.3 | 17.6 | 18 | 18.2 | 18.9 | 19.2 | 19.9 | 20.2 |
| M | Stand Over Height (inch) | 28.6 | 28.9 | 28.9 | 29.2 | 28.8 | 29.2 | 29.2 | 29.5 |
| O | Stem Length (inch) | 1.6 | 1.6 | 2 | 2 |
| P | Crank Length (inch) | 6.3 | 6.5 | 6.5 | 6.7 |
| Q | Wheel Size | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] |
Bike Shipping
Bike Shipping
Delivery is available upon specific request for our special order bikes.
Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.
The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.
To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.
Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
Assembly
Assembly
Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.
Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.
Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
*Shipping is restricted to certain brands due to assembly requirements.
Returns / Cancellations
Returns / Cancellations
If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.
Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item
Contact us with any product enquiries you have prior to purchasing.
For more information, please read our Special Order terms and conditions.
Sizing and Geometry
Giant Trance E+
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height | Rider Height (cm) |
|---|---|---|
| S | 5′ 4″ – 5′ 9″ | 163 – 174 |
| M | 5′ 7″ – 6′ 0″ | 171 – 182 |
| L | 5′ 10″ – 6′ 3″ | 179 – 190 |
| XL | 6′ 2″ – 6′ 6″ | 187 – 199 |
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | Seat Tube Length (inch) | 15.7 | 16.7 | 17.7 | 18.7 |
| A1 | Seat Post Insertion Depth (inch) | 8.7 | 9.6 | 10.6 | 11.6 |
| B | Seat Tube Angle | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | Top Tube Length (inch) | 22.7 | 22.6 | 23.9 | 23.8 | 25 | 25 | 26.2 | 26.1 |
| D | Head Tube Length (inch) | 3.7 | 3.9 | 4.5 | 5.1 |
| E | Head Tube Angle | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | Trail (inch) | 4.4 | 4.3 | 4.4 | 4.3 | 4.4 | 4.3 | 4.4 | 4.3 |
| H | Wheelbase (inch) | 47 | 47 | 47.8 | 47.7 | 49 | 49 | 50.2 | 50.2 |
| I | Chain Stay Length (inch) | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 |
| J | Bottom Bracket Drop (inch) | 0.4 | 0.4 | 0.4 | 0.4 |
| K | Stack (inch) | 23.9 | 23.7 | 24.1 | 23.8 | 24.6 | 24.4 | 25.2 | 24.9 |
| L | Reach (inch) | 17.3 | 17.6 | 18 | 18.2 | 18.9 | 19.2 | 19.9 | 20.2 |
| M | Stand Over Height (inch) | 28.6 | 28.9 | 28.9 | 29.2 | 28.8 | 29.2 | 29.2 | 29.5 |
| O | Stem Length (inch) | 1.6 | 1.6 | 2 | 2 |
| P | Crank Length (inch) | 6.3 | 6.5 | 6.5 | 6.7 |
| Q | Wheel Size | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] |
Accelerate up climbs, float through rock gardens, experience more power, agility and control with this lightweight, full-suspension E-MTB. A new ultra-slim battery minimises weight so you can ride technical trails the way you always dreamed of.
Lighter weight
EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.

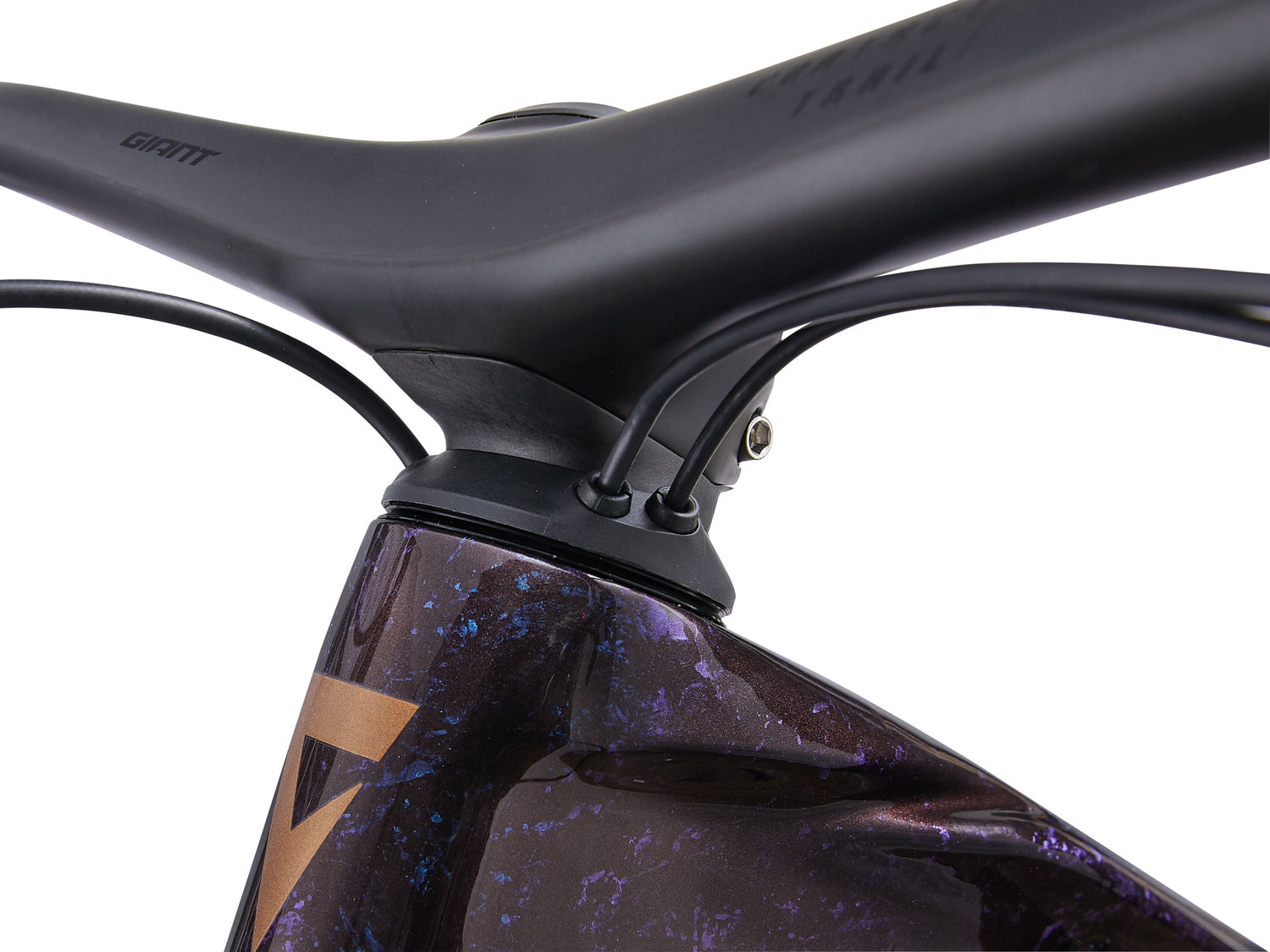

Advanced cockpit control
RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

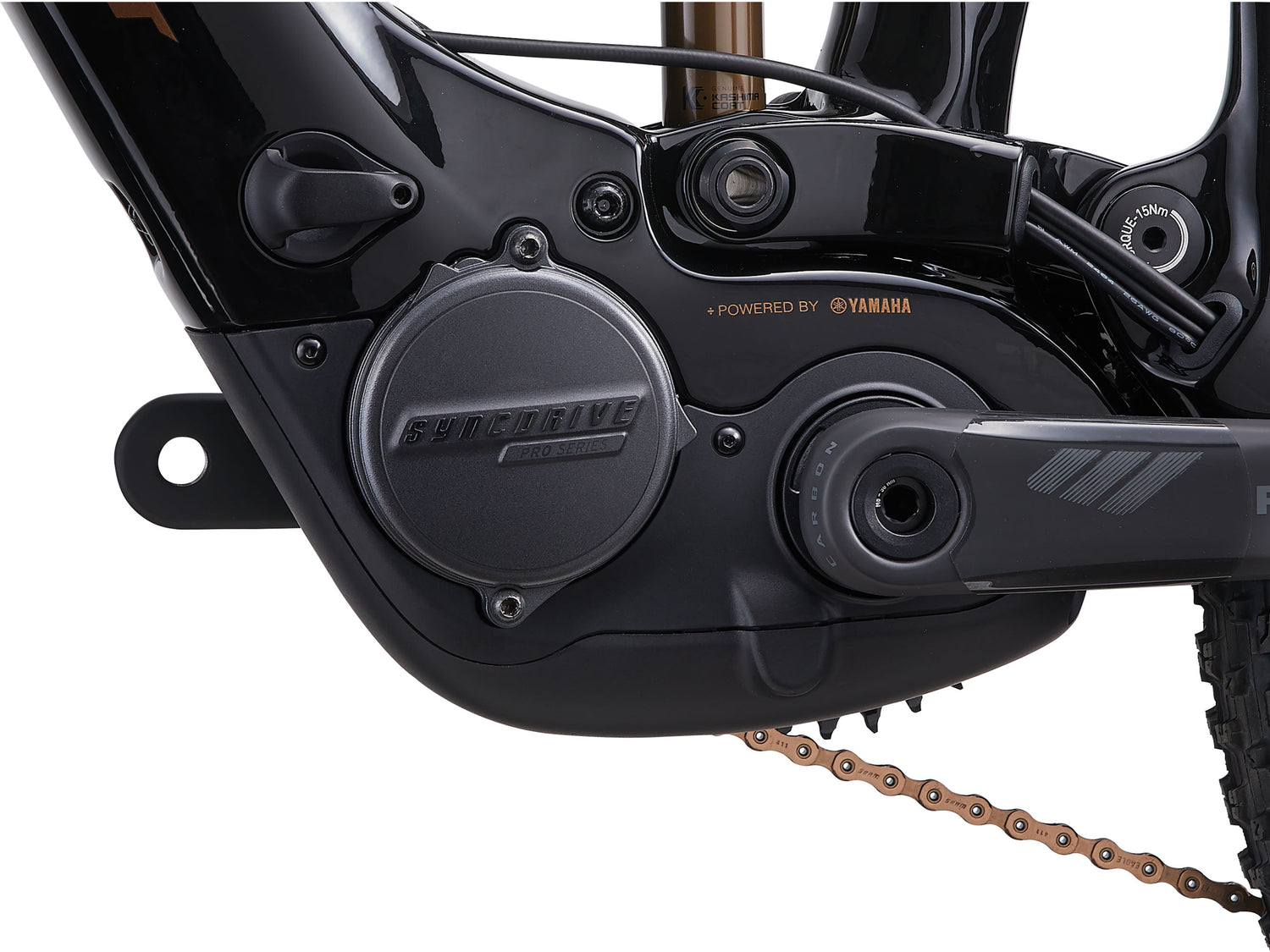

More power

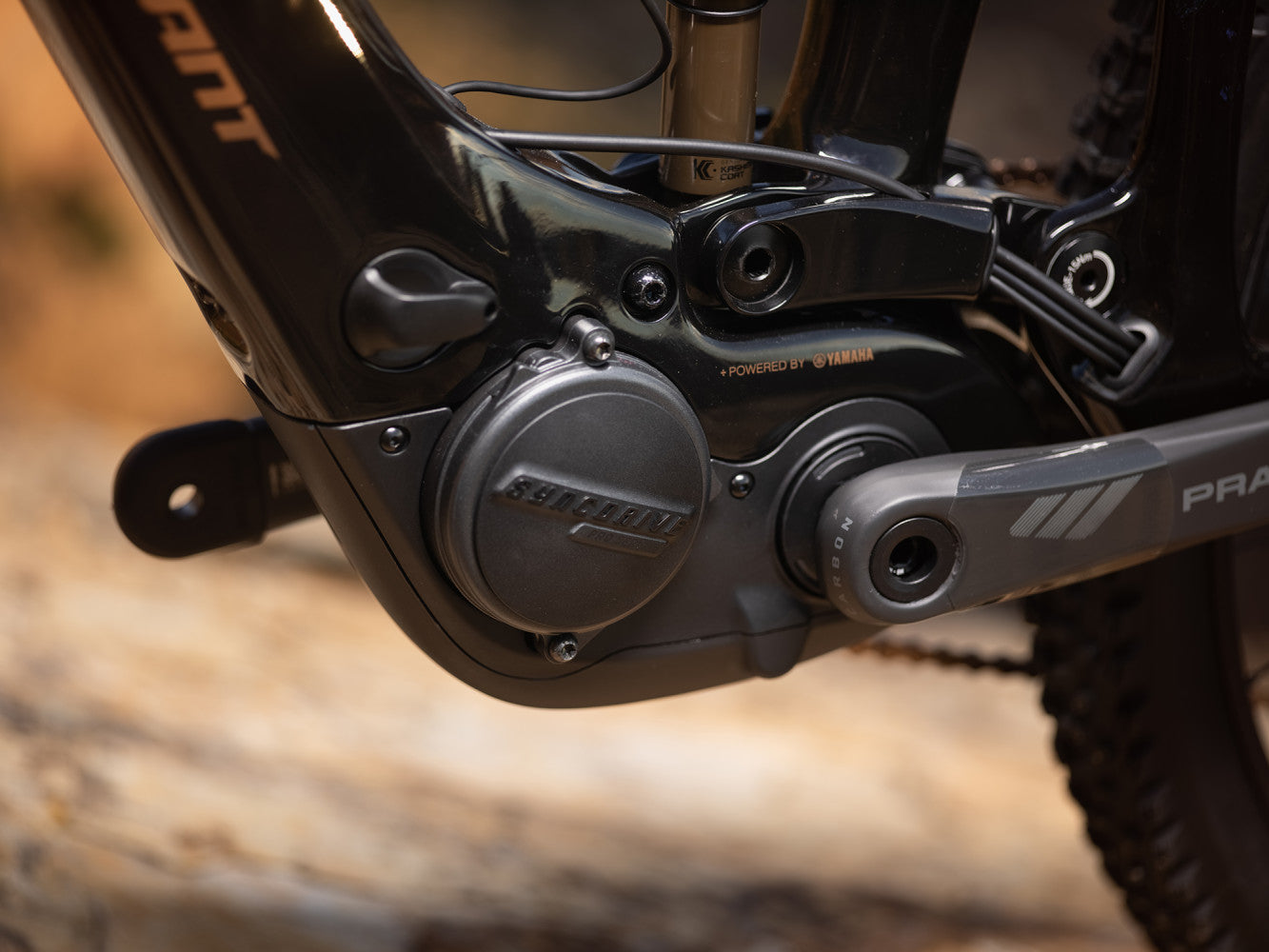

SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorised as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
- Extreme: 35 km
- Good: 70 km
- Ideal: 130 km
-
Motor
-
Controller
-
Display
-
Battery
-
Charger
-
Frame material
-
Frame
-
Fork
-
Shock
-
Handlebar
-
Grips
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Extras
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults, Teenagers
-
GenderMens
-
DisciplineMountain, Electric
-
SKUsMirage/Black/L: 2313303107, Purple/S: 2313303104, Purple/M: 2313303105, Purple/XL: 2313303108
