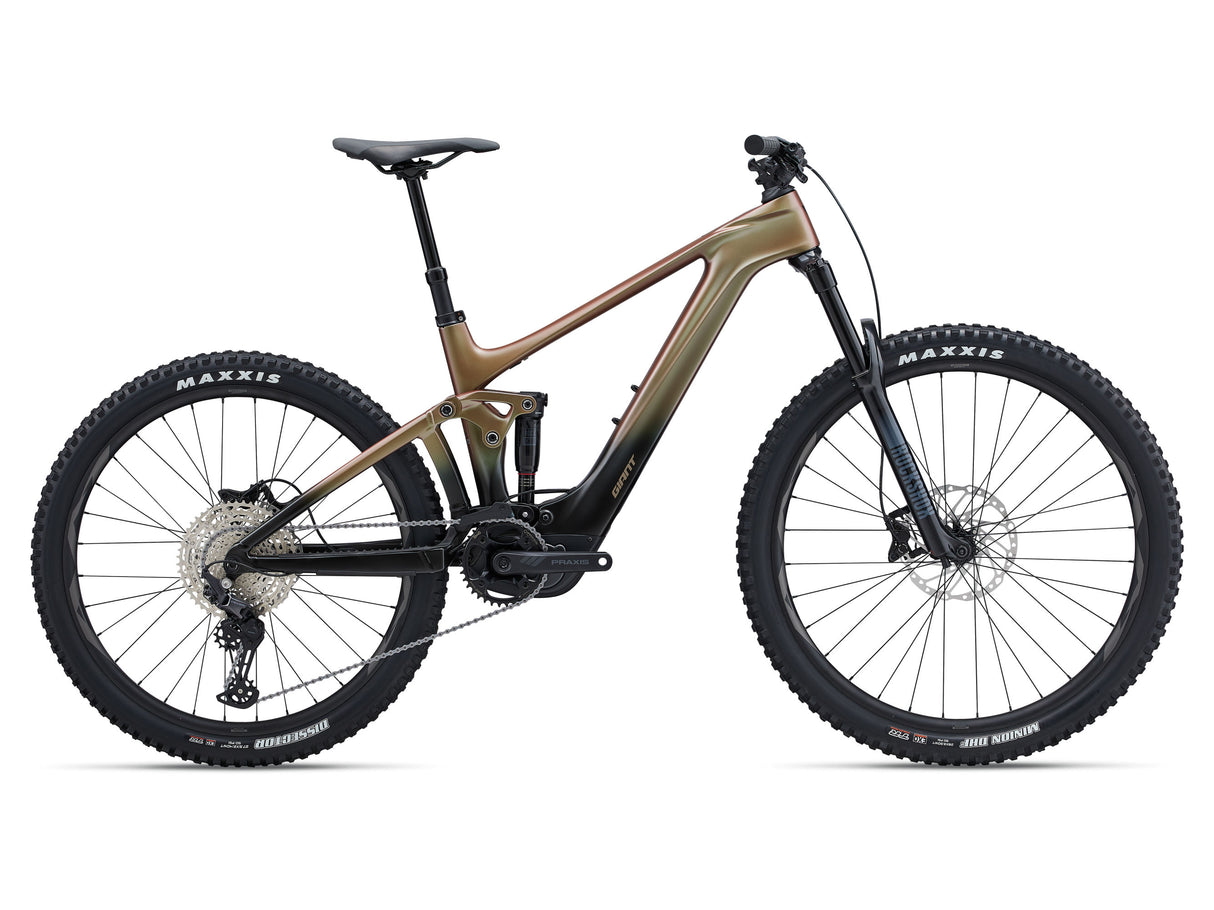

Giant Trance X Advanced E+ Elite 3 (2023)
Giant Trance X Advanced E+ Elite 3 (2023) - Messier/Panther / L is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Giant Trance E+
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height | Rider Height (cm) |
|---|---|---|
| S | 5′ 4″ – 5′ 9″ | 163 – 174 |
| M | 5′ 7″ – 6′ 0″ | 171 – 182 |
| L | 5′ 10″ – 6′ 3″ | 179 – 190 |
| XL | 6′ 2″ – 6′ 6″ | 187 – 199 |
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | Seat Tube Length (inch) | 15.7 | 16.7 | 17.7 | 18.7 |
| A1 | Seat Post Insertion Depth (inch) | 8.7 | 9.6 | 10.6 | 11.6 |
| B | Seat Tube Angle | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | Top Tube Length (inch) | 22.7 | 22.6 | 23.9 | 23.8 | 25 | 25 | 26.2 | 26.1 |
| D | Head Tube Length (inch) | 3.7 | 3.9 | 4.5 | 5.1 |
| E | Head Tube Angle | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | Trail (inch) | 4.4 | 4.3 | 4.4 | 4.3 | 4.4 | 4.3 | 4.4 | 4.3 |
| H | Wheelbase (inch) | 47 | 47 | 47.8 | 47.7 | 49 | 49 | 50.2 | 50.2 |
| I | Chain Stay Length (inch) | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 |
| J | Bottom Bracket Drop (inch) | 0.4 | 0.4 | 0.4 | 0.4 |
| K | Stack (inch) | 23.9 | 23.7 | 24.1 | 23.8 | 24.6 | 24.4 | 25.2 | 24.9 |
| L | Reach (inch) | 17.3 | 17.6 | 18 | 18.2 | 18.9 | 19.2 | 19.9 | 20.2 |
| M | Stand Over Height (inch) | 28.6 | 28.9 | 28.9 | 29.2 | 28.8 | 29.2 | 29.2 | 29.5 |
| O | Stem Length (inch) | 1.6 | 1.6 | 2 | 2 |
| P | Crank Length (inch) | 6.3 | 6.5 | 6.5 | 6.7 |
| Q | Wheel Size | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] |
Shipping Information
Shipping Information
Certain bike brands cannot be shipped and are only available for Click and Collect.
These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.
For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.
Sizing and Geometry
Giant Trance E+
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height | Rider Height (cm) |
|---|---|---|
| S | 5′ 4″ – 5′ 9″ | 163 – 174 |
| M | 5′ 7″ – 6′ 0″ | 171 – 182 |
| L | 5′ 10″ – 6′ 3″ | 179 – 190 |
| XL | 6′ 2″ – 6′ 6″ | 187 – 199 |
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | Seat Tube Length (inch) | 15.7 | 16.7 | 17.7 | 18.7 |
| A1 | Seat Post Insertion Depth (inch) | 8.7 | 9.6 | 10.6 | 11.6 |
| B | Seat Tube Angle | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | Top Tube Length (inch) | 22.7 | 22.6 | 23.9 | 23.8 | 25 | 25 | 26.2 | 26.1 |
| D | Head Tube Length (inch) | 3.7 | 3.9 | 4.5 | 5.1 |
| E | Head Tube Angle | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | Trail (inch) | 4.4 | 4.3 | 4.4 | 4.3 | 4.4 | 4.3 | 4.4 | 4.3 |
| H | Wheelbase (inch) | 47 | 47 | 47.8 | 47.7 | 49 | 49 | 50.2 | 50.2 |
| I | Chain Stay Length (inch) | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 |
| J | Bottom Bracket Drop (inch) | 0.4 | 0.4 | 0.4 | 0.4 |
| K | Stack (inch) | 23.9 | 23.7 | 24.1 | 23.8 | 24.6 | 24.4 | 25.2 | 24.9 |
| L | Reach (inch) | 17.3 | 17.6 | 18 | 18.2 | 18.9 | 19.2 | 19.9 | 20.2 |
| M | Stand Over Height (inch) | 28.6 | 28.9 | 28.9 | 29.2 | 28.8 | 29.2 | 29.2 | 29.5 |
| O | Stem Length (inch) | 1.6 | 1.6 | 2 | 2 |
| P | Crank Length (inch) | 6.3 | 6.5 | 6.5 | 6.7 |
| Q | Wheel Size | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] |
Giant Trance X Advanced E+ Elite 3 (2023)
Giant Trance X Advanced E+ Elite 3 (2023)
Accelerate up climbs, float through rock gardens, experience more power, agility and control with this lightweight dual-suspension E-MTB.
The 2023 Giant Trance X Advanced E+ Elite 3 features a new ultra-slim battery which minimises weight so you can ride technical trails the way you've always dreamed.
- Torque: 85Nm
- Battery Size: 400Wh
- Motor: Giant SyncDrive Pro 2
- Suspension Travel: [F] 150mm [R] 140mm
All-new composite frame features adjustable geometry with a new flip chip feature.
The SyncDrive Pro 2 motor delivers 85Nm of torque for a seamless boost of power even at low speeds and on technical trails.
The new composite Giant Contact SLR Trail integrated handlebar has a sleek design for precision off-road control.
It comes with two control centres, the RideControl Go multifunctional on/off button on the top tube, and the new RideControl Ergo 3 handlebar-mounted remote.
Lightweight
New EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller package that's cleanly integrated with the composite frameset.
Advanced cockpit control
RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.
More power
New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
Below we've detailed the expected range for the Energypak 400 Battery / SyncDrive Pro Motor. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
- Extreme conditions: 35km
- Good conditions: 70km
- Ideal conditions: 130km
SPECIFICATIONS
| Motor | SyncDrive Pro2 85Nm, powered by Yamaha |
| Controller | RideControl Ergo 3, grip integrated |
| Display | RideControl GO, frame integrated LED display, ANT+ Wireless display compatible |
| Battery | EnergyPak Smart 400Wh, EnergyPak Plus, range extender compatible |
| Charger | Giant EnergyPak 4A smart charger, 60% in 1:45 |
| Connectivity | Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile |
| Sizes | S, M, L, XL |
| Colours | Messier/Panther |
| Frame | Advanced-Grade Composite front triangle, ALUXX SL-Grade rear triangle, 140mm Maestro suspension, flip chip, UDH hanger, 12x148mm thru-axle |
| Fork | RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControl rebound and lockout control, 15x110 Boost, Maxle Stealth, e-bike optimised |
| Shock | Rock Shox Deluxe Select R, DebonAir, custom tuned |
| Handlebar | Giant Contact SL 35 Trail |
| Grips | Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL) |
| Stem | Giant Contact SL 35 |
| Seatpost | Giant Contact Switch, dropper |
| Saddle | Giant Romero, Neutral |
| Pedals | N/A |
| Shifters | Shimano Deore |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano Deore 12-speed, Shadow+ |
| Brakes | Shimano BR-MT420, 4-piston, hydraulic disc, 203mm [F/R] |
| Brake Levers | Shimano Deore, I-spec EV |
| Cassette | Shimano CS-M6100-12, 10-51T, 12-speed |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Crankset | Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set |
| Bottom Bracket | N/A |
| Rims | Giant AM, alloy 29"[F], 27.5" [R] |
| Hubs | Shimano MT410 Boost, Center-Lock, 110x15 [F], 148x12 Shimano Micro-Spline Drive Body Thru-axle [R] |
| Spokes | Sapim E-Lite [R] Race [F], e-bike optimized |
| Tyres | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
| Extras | Tubeless kit (liquid, valves, levers) |
| Lighting | Optional: Giant Recon series e-bike lights available and direct connectable |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
-
Frame material
-
Age GroupAdults
-
GenderMens
